100% Fully Analogue Oscillator.

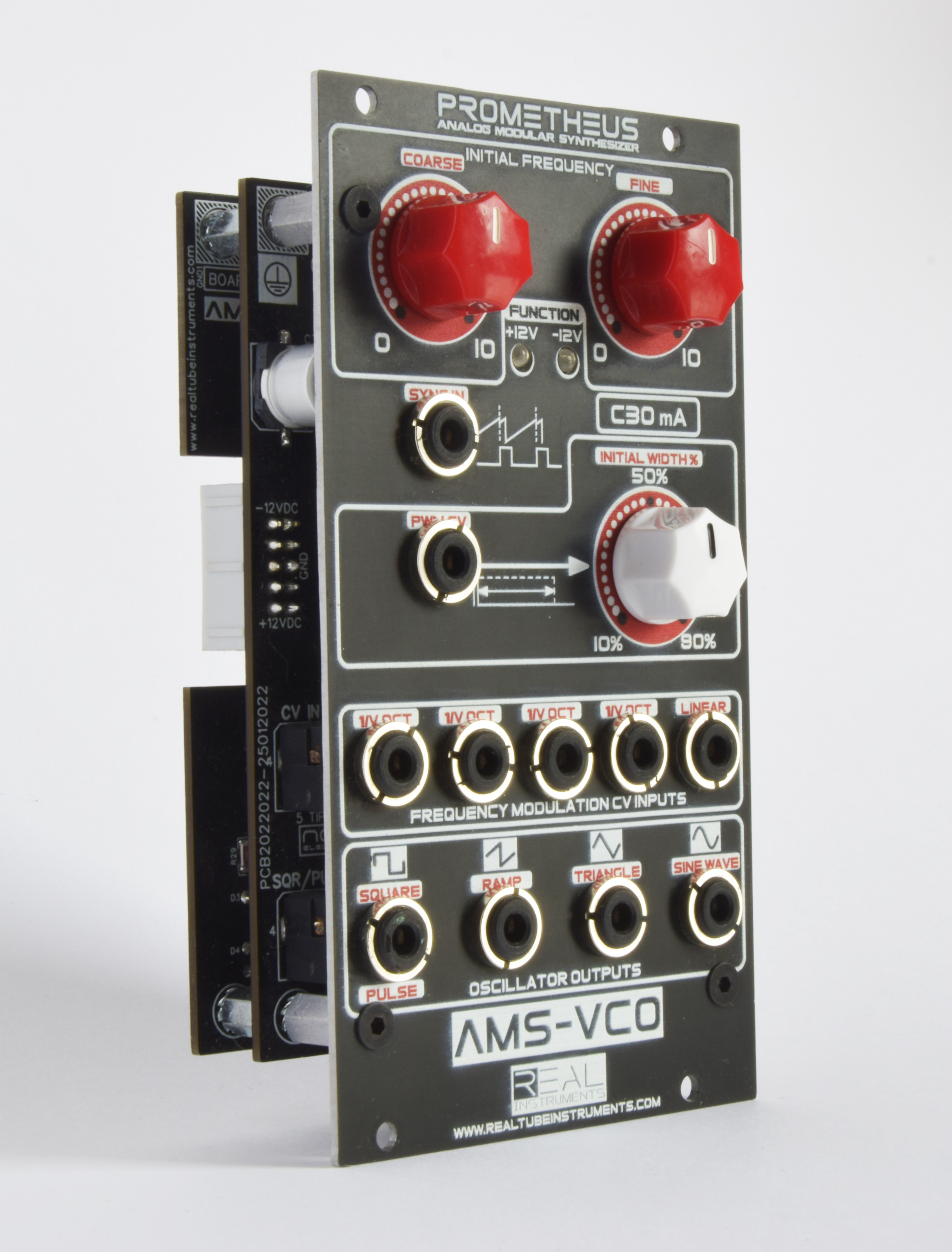

PROMETHEUS ANALOG MODULAR SYNTHESIZER AMS-VCO – a compact yet rugged 14 HP oscillator, basic module for your synthesizer. This VCO has 4 waveforms: square, ramp, triangle and sine. The frequency range goes from 1.4 Hz up to 13.1 KHz. A SYNC input and a control voltage input are added to PVM. A temperature compensation circuit makes this VCO extremely stable. Featuring a 10-pin IDC connector and advanced protections, this module is your ticket to a simplified and efficient setup. Handcrafted with precision and great care at Real Instruments, it is the great solution for your modular synthesizer needs.
Made internally in Real Instruments laboratories with great care and precision. Consisting of precision Oscillator of the highest quality. Two "function" LEDs allow you to constantly monitor the two main voltages: +12 VDC and -12VDC. The 10-pin IDC connector allows you to "cascade" connect many modules up to a maximum of 1500 mA.
Handcrafted in our laboratory with a delivery
time of 15 days from order. 12 months
warranty (with invoice).
(We will be able, in the near future, to
speed up delivery times as we increase our production.
We are a small workshop and put a lot of effort into
what we build)

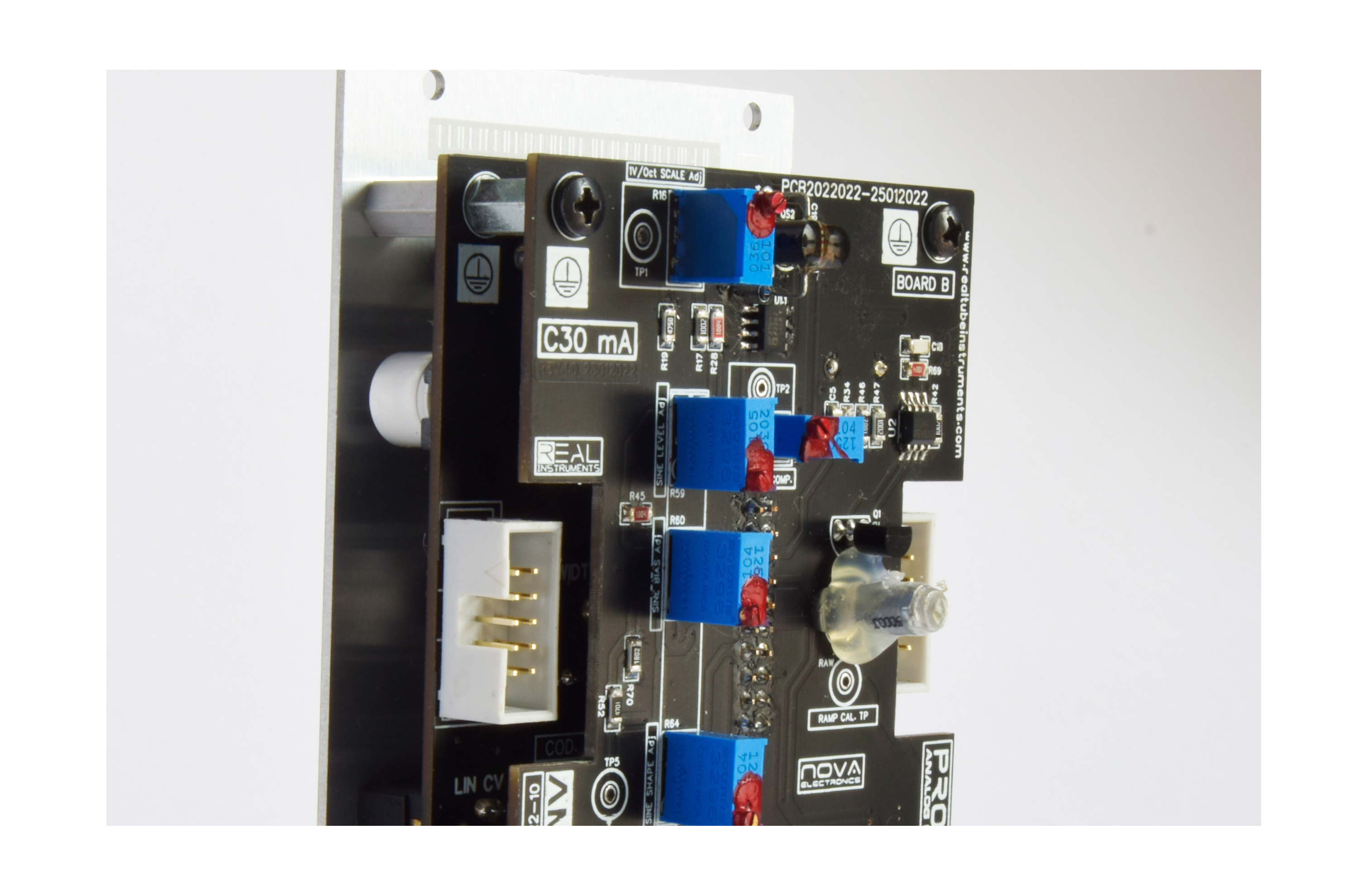

| -Supply Input: | +/-12 VDC - 30 mA (10 pins IDC connector - see picture) | ||
| -Waves Output: | Square (PWM controlled), Ramp, Triangle, Sine (separated outputs) | ||
| -Range: | 1.4 Hz - 13.1 KHz
/ 10 Vpp - 4.180 Vrms 8 octave Control Voltage range | ||
| -Connections: | Waves SYNC IN jack 3.5
connector PWM CV input jack 3.5 connector 4 x 1V/oct CV INPUTS jack 3.5 connectors 1 x linear CV INPUT jack 3.5 connector | ||
| -Dimensions: | 3 Rack Unit, 14 HP | ||
| -Environment: | Operating, 0°C to +50°C Storage, -20°C to +60°C |
||
| -Price: | |
||
