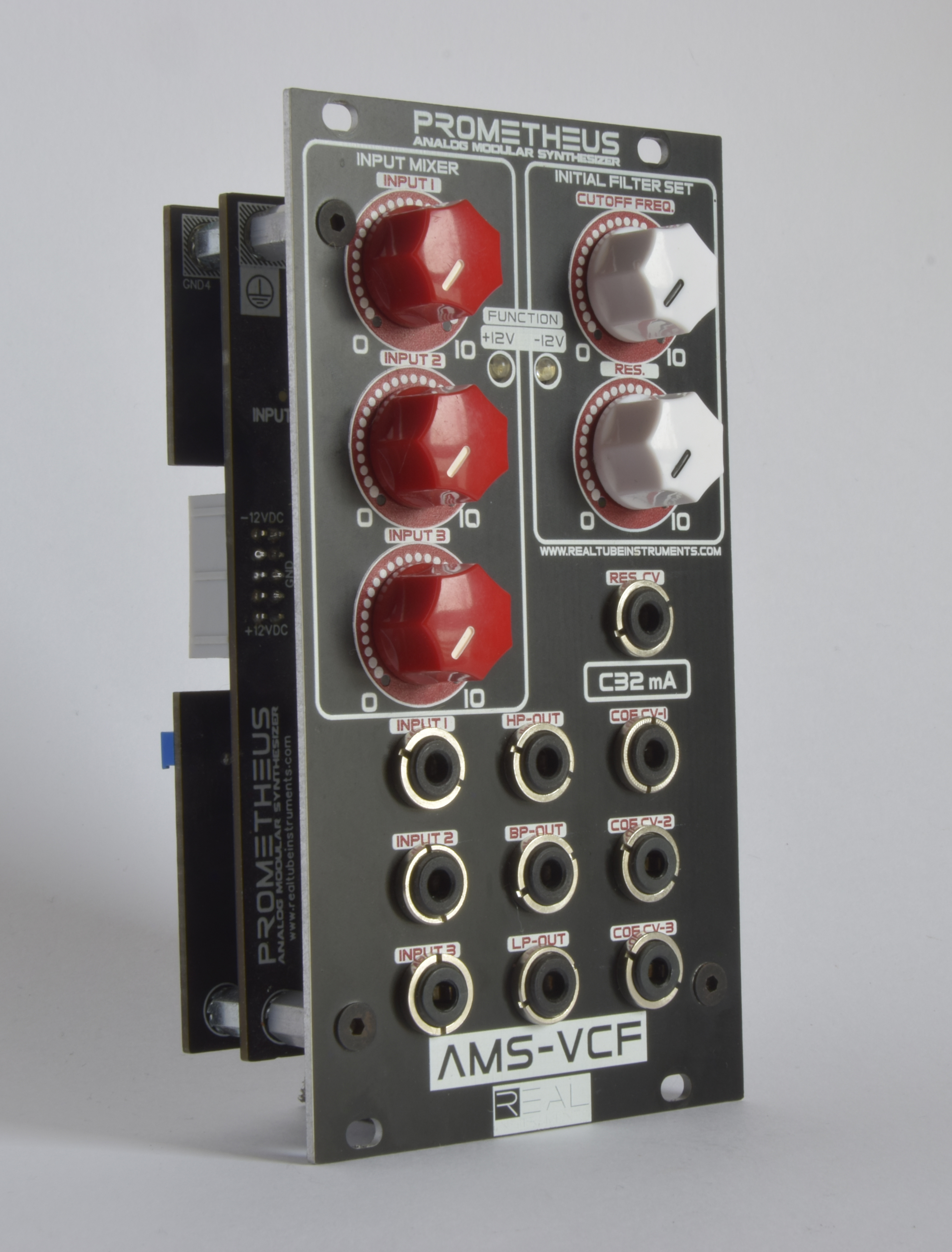

100% Fully Analogue Voltage-Controlled Filter.
PROMETHEUS ANALOG MODULAR SYNTHESIZER AMS-VCF – a compact yet rugged 14 HP Voltage-Controlled Filter, basic module for your synthesizer. This VCF has 3 signal inputs with a indipendent regulation levels. 3 filtered outputs: Lowpass, Highpass and Bandpass. 3 CV inputs are added for CUTOFF control and an CV input for the RESONANCE control. Featuring a 10-pin IDC connector and advanced protections, this power module is your ticket to a simplified and efficient setup. Handcrafted with precision and great care at Real Instruments, it is the great solution for your modular synthesizer needs.
Made internally in Real Instruments laboratories with great care and precision. Consisting of precision Voltage-Control Filter of the highest quality. Two "function" LEDs allow you to constantly monitor the two main voltages: +12 VDC and -12VDC. The 10-pin IDC connector allows you to "cascade" connect many modules up to a maximum of 1500 mA.
Handcrafted in our laboratory with a delivery
time of 15 days from order. 12 months
warranty (with invoice).
(We will be able, in the near future, to
speed up delivery times as we increase our production.
We are a small workshop and put a lot of effort into
what we build)
| -Supply Input: | +/-12 VDC - 32 mA (10 pins IDC connector - see picture) | ||
| -Output: | Lowpass, Bandpass, Highpass | ||
| -Range: | +/- 10 V Control Voltage Range | ||
| -Connections: | 3 x Audio Input signal jack 3.5
connectors LOWPASS output signal jack 3.5 connector BANDPASS output signal jack 3.5 connector HIGHPASS output signal jack 3.5 connector 1 x CV INPUT jack 3.5 connector for RESONANCE 3 x CV INPUT jack 3.5 connectors for CUTOFF | ||
| -Dimensions: | 3 Rack Unit, 14 HP | ||
| -Environment: | Operating, 0°C to +50°C Storage, -20°C to +60°C |
||
| -Price: | |
||
