100% Fully Analogue Dual Log/Linear VCA.

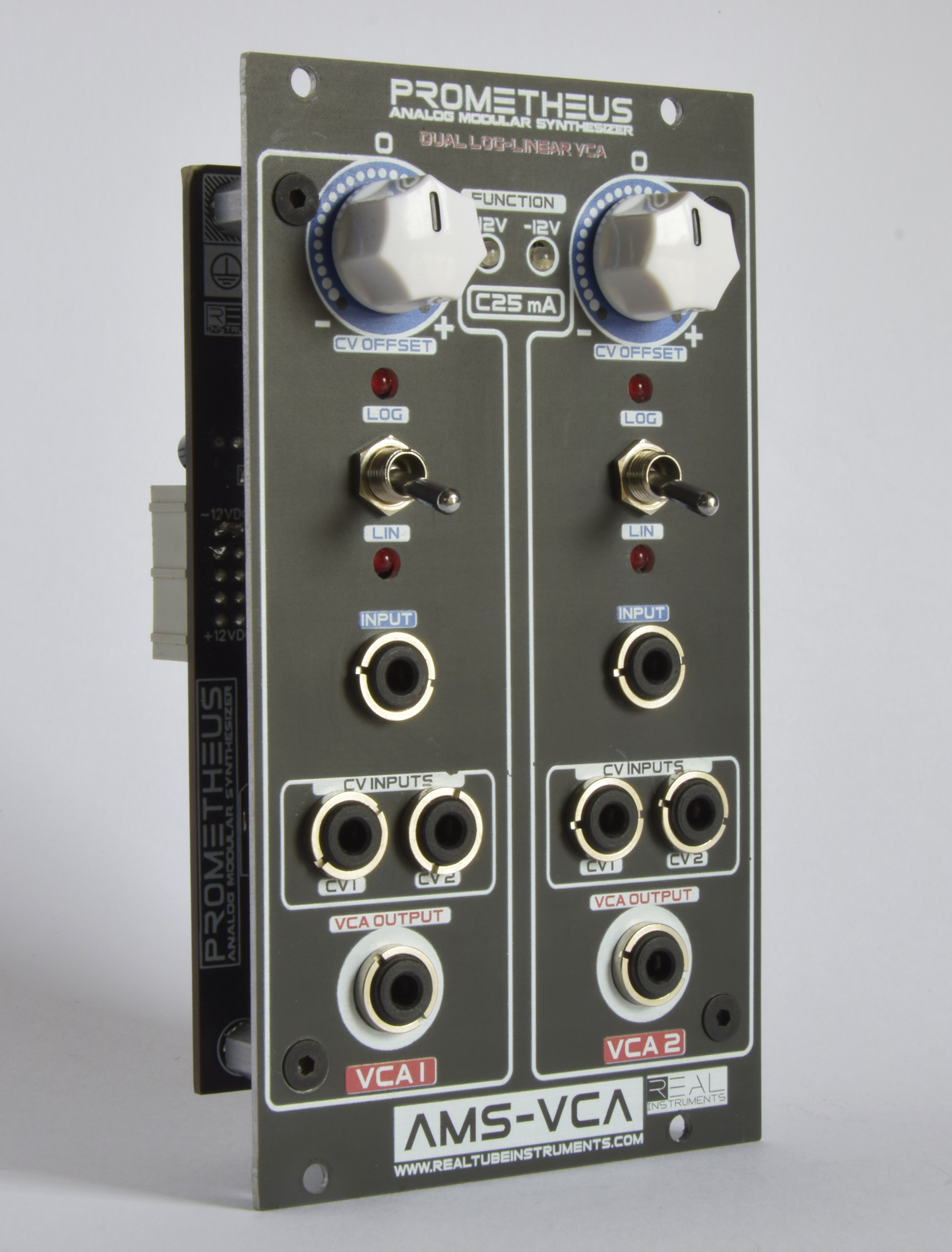

PROMETHEUS ANALOG MODULAR SYNTHESIZER AMS-VCA – a compact yet rugged 14 HP dual log/linear Voltage Controlled Amplifier, basic module for your synthesizer. This classic dual VCA in pure analog style provides ring modulation, stereo pan, vibrato and delayed effects as well as creating a normal envelope to the sound. It has LINEAR and LOGARITHMIC response to the control voltage. Consisting of two identical VCA controlled individually and with precise offset adjustment. An "OFFSET" potentiometer for each VCA allows perfect adjustment of the "NULL" when switching from LIN to LOG. Featuring a 10-pin IDC connector and advanced protections, this module is your ticket to a simplified and efficient setup. Handcrafted with precision and great care at Real Instruments, it is the great solution for your modular synthesizer needs.
Made internally in Real Instruments laboratories with great care and precision. Consisting of precision Dual Log/Lin Voltage Controlled Amplifier of the highest quality. Two "function" LEDs allow you to constantly monitor the two main voltages: +12 VDC and -12VDC. The 10-pin IDC connector allows you to "cascade" connect many modules up to a maximum of 1500 mA.
Handcrafted in our laboratory with a delivery
time of 15 days from order. 12 months
warranty (with invoice).
(We will be able, in the near future, to
speed up delivery times as we increase our production.
We are a small workshop and put a lot of effort into
what we build)

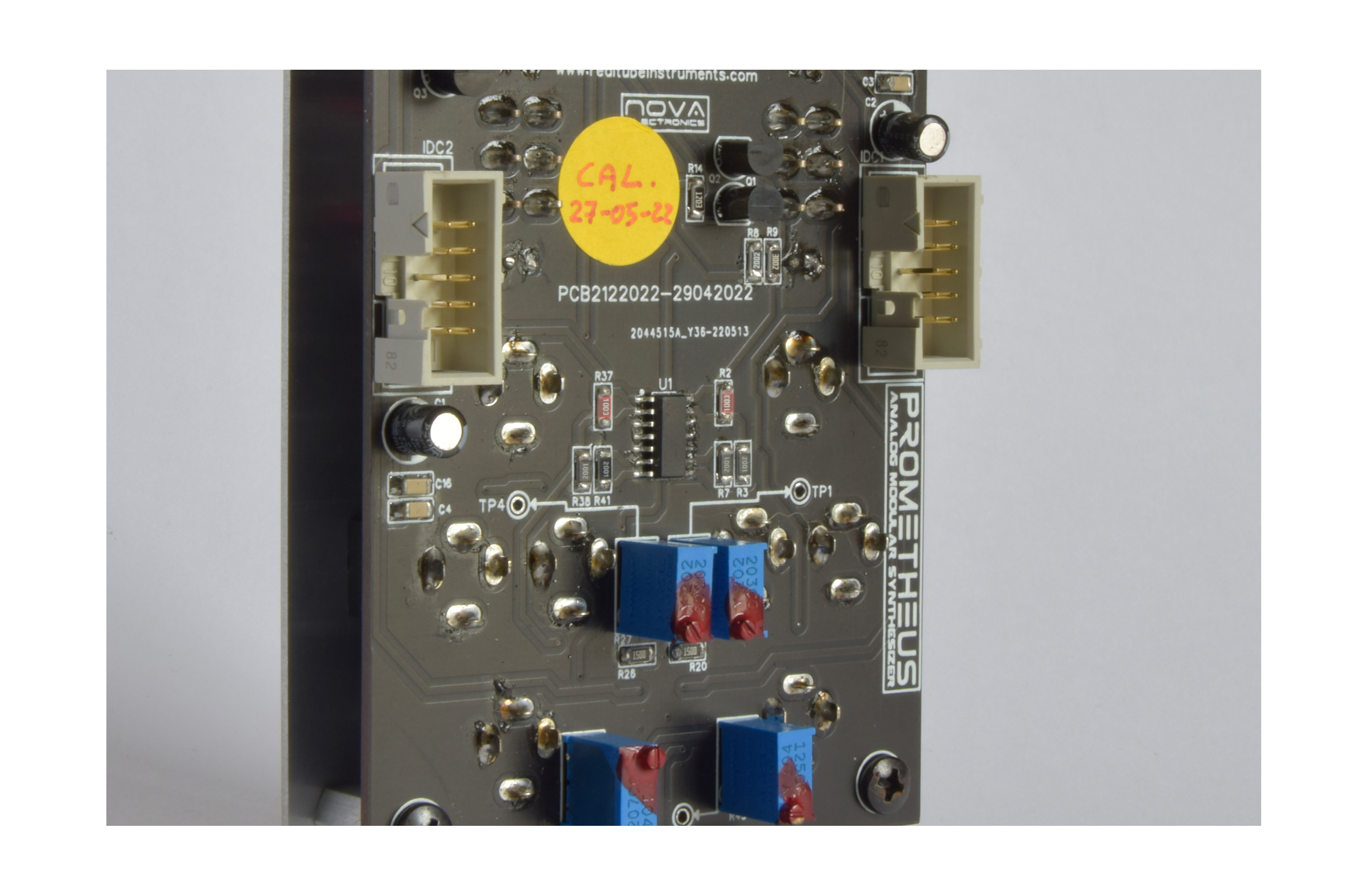

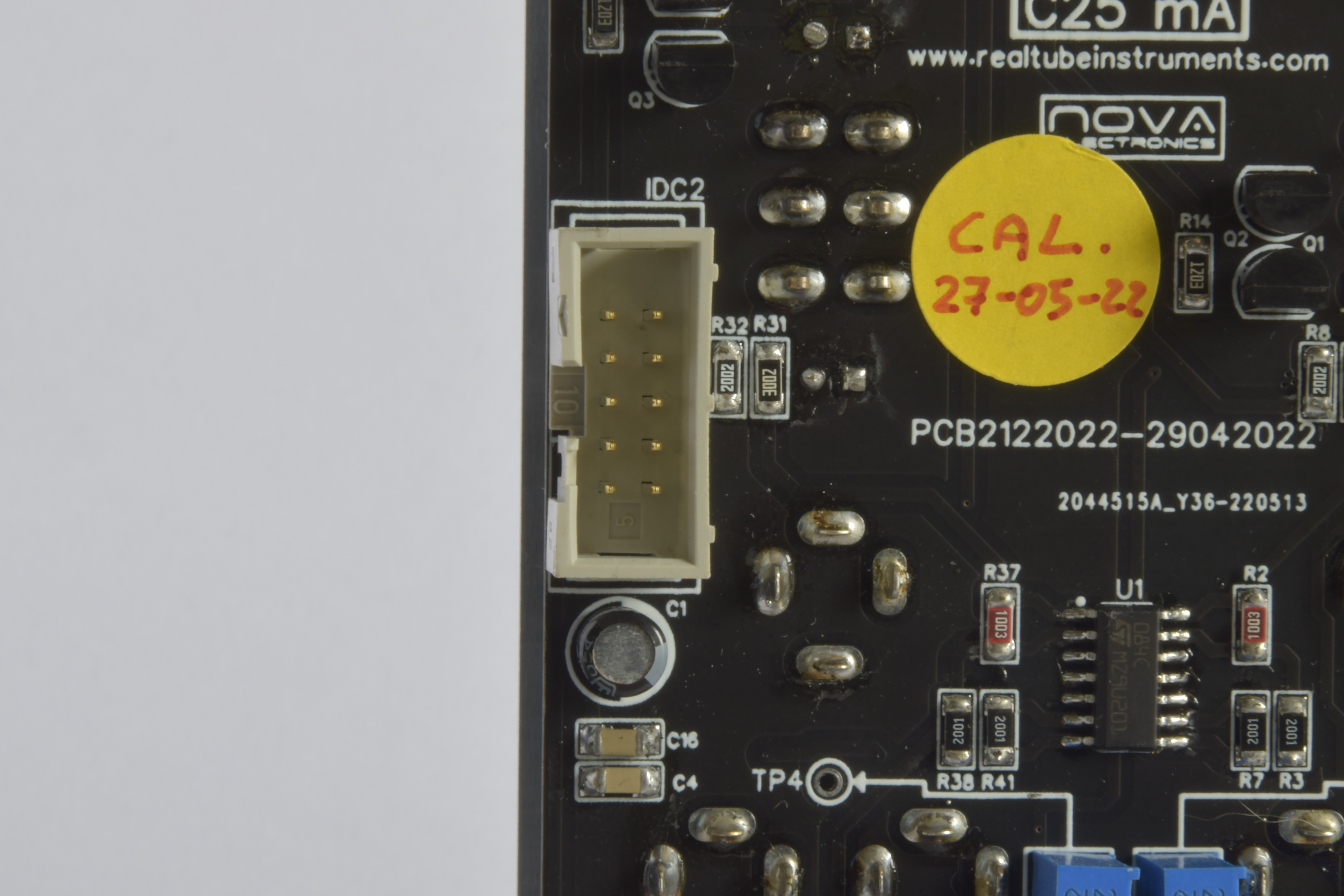

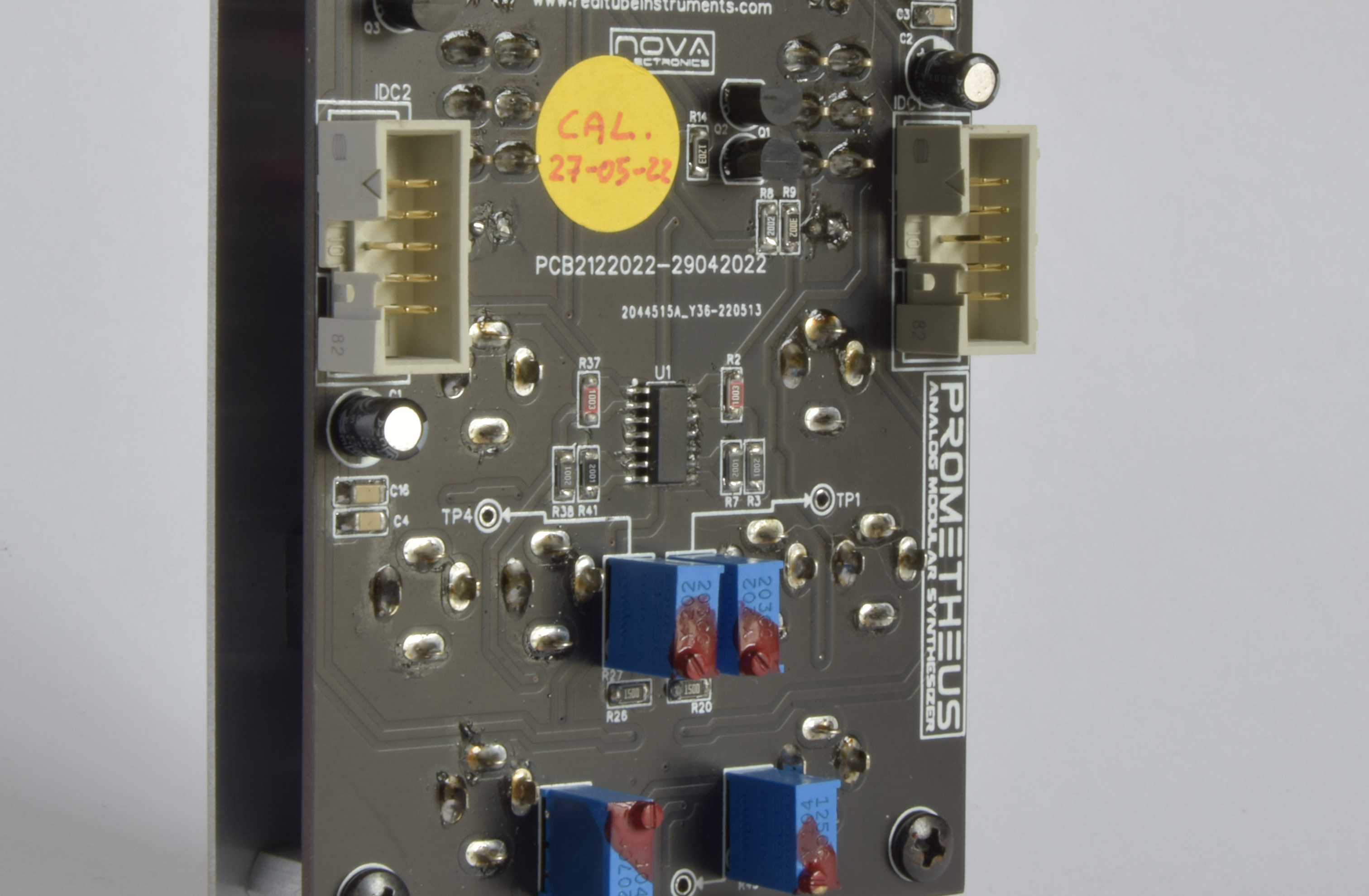

| -Supply Input: | +/-12 VDC - 25 mA (10 pins IDC connector - see picture) | ||
| -Range: | CV Control - +/- 5 Vdc | ||
| -Connections: | PWM CV input jack 3.5 connector 2 x not linear/oct CV INPUTS jack 3.5 connector for each VCA (Normally used with the control output of an ADSR) 1 x AUDIO INPUTS jack 3.5 connector for each VCA 1 x VCA OUPUTS jack 3.5 connector for each VCA | ||
| -Dimensions: | 3 Rack Unit, 14 HP | ||
| -Environment: | Operating, 0°C to +50°C Storage, -20°C to +60°C |
||
| -Price: | |
||
PRODUCT DOWNLOADS |
|||
|
|||
|
|||
|
