AMS-SEQ - Modular Eurorack 16 Steps Analog Sequencer

100% Real Analogue 16 Steps Sequencer.

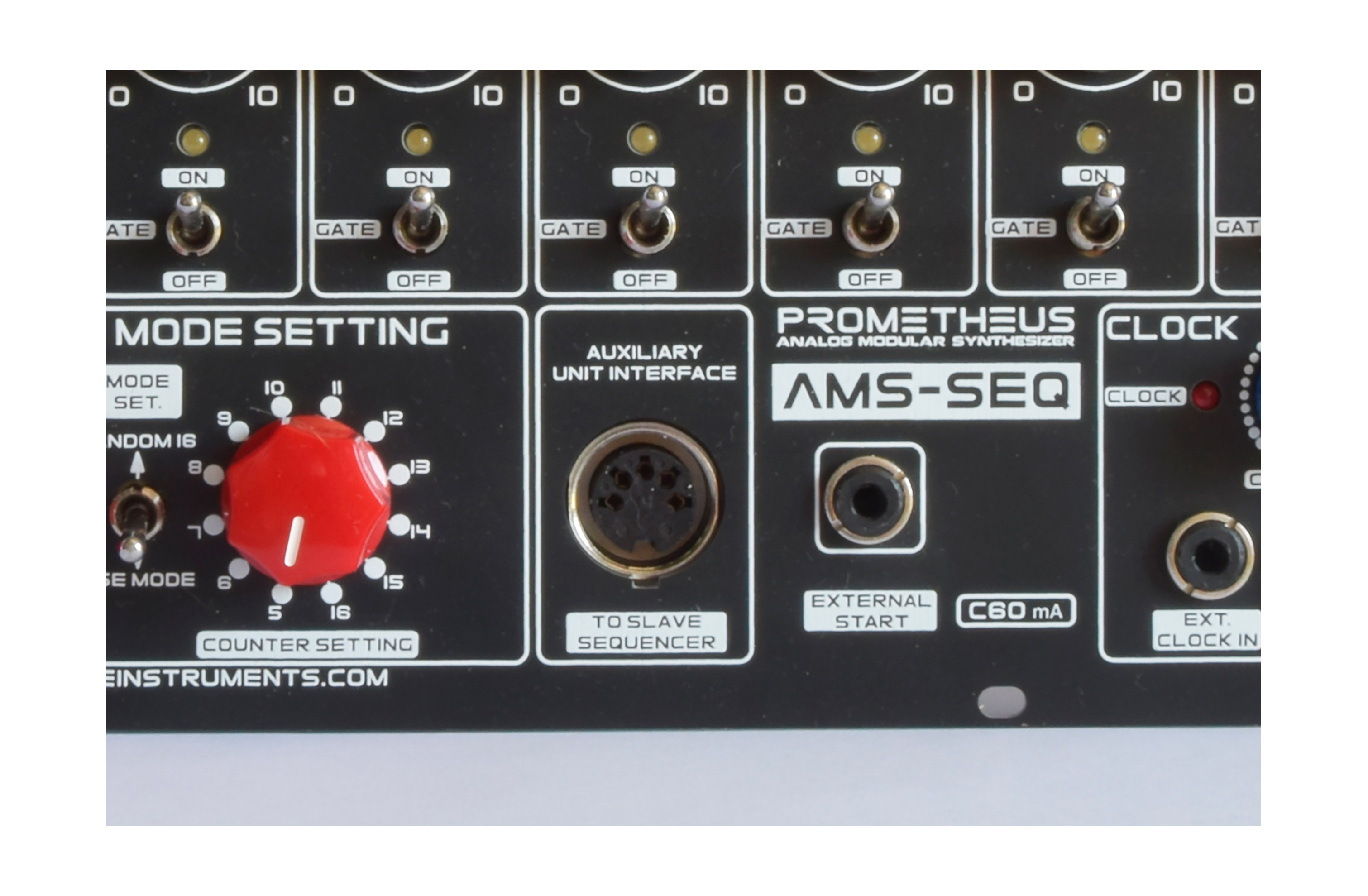

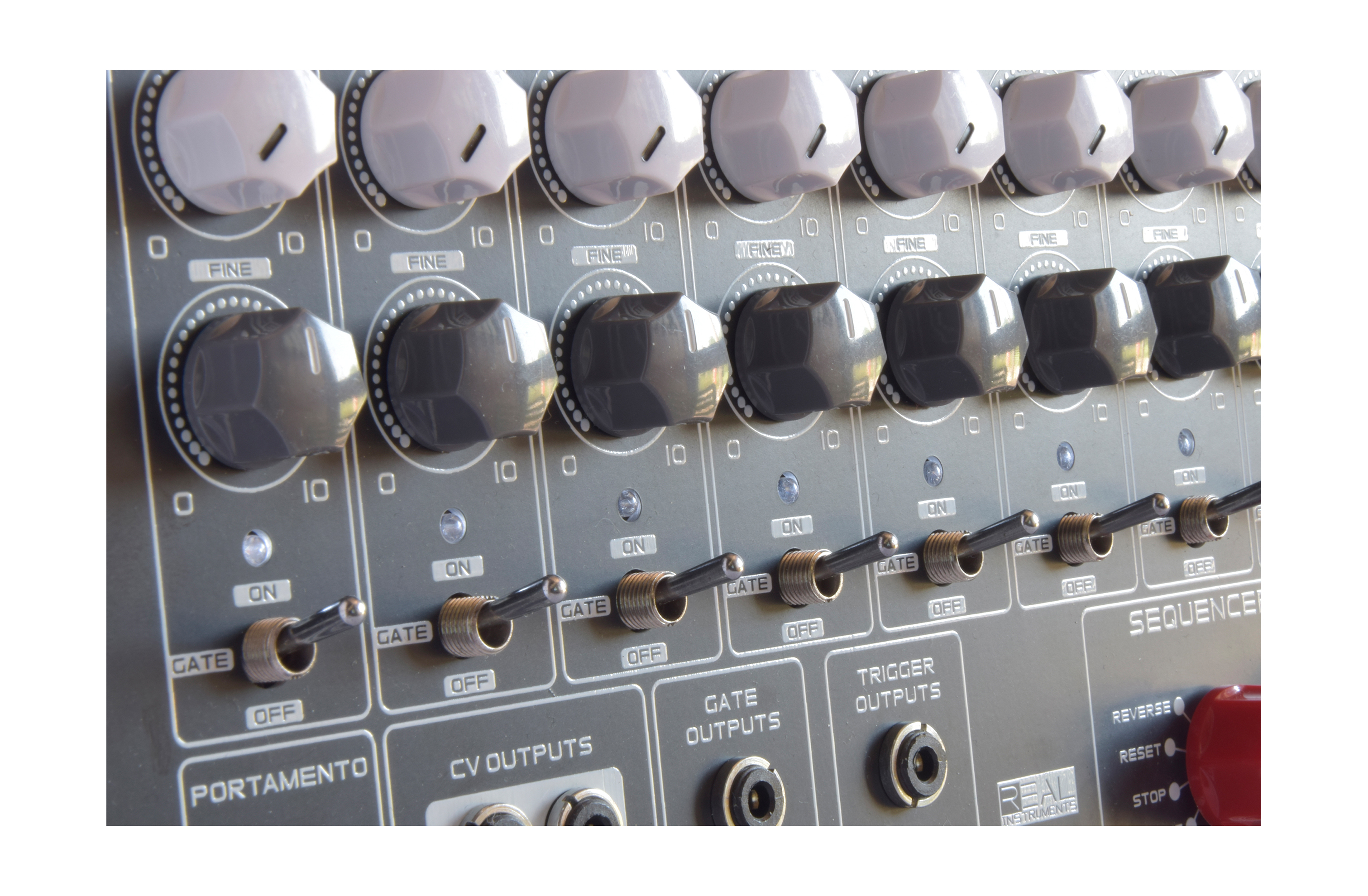

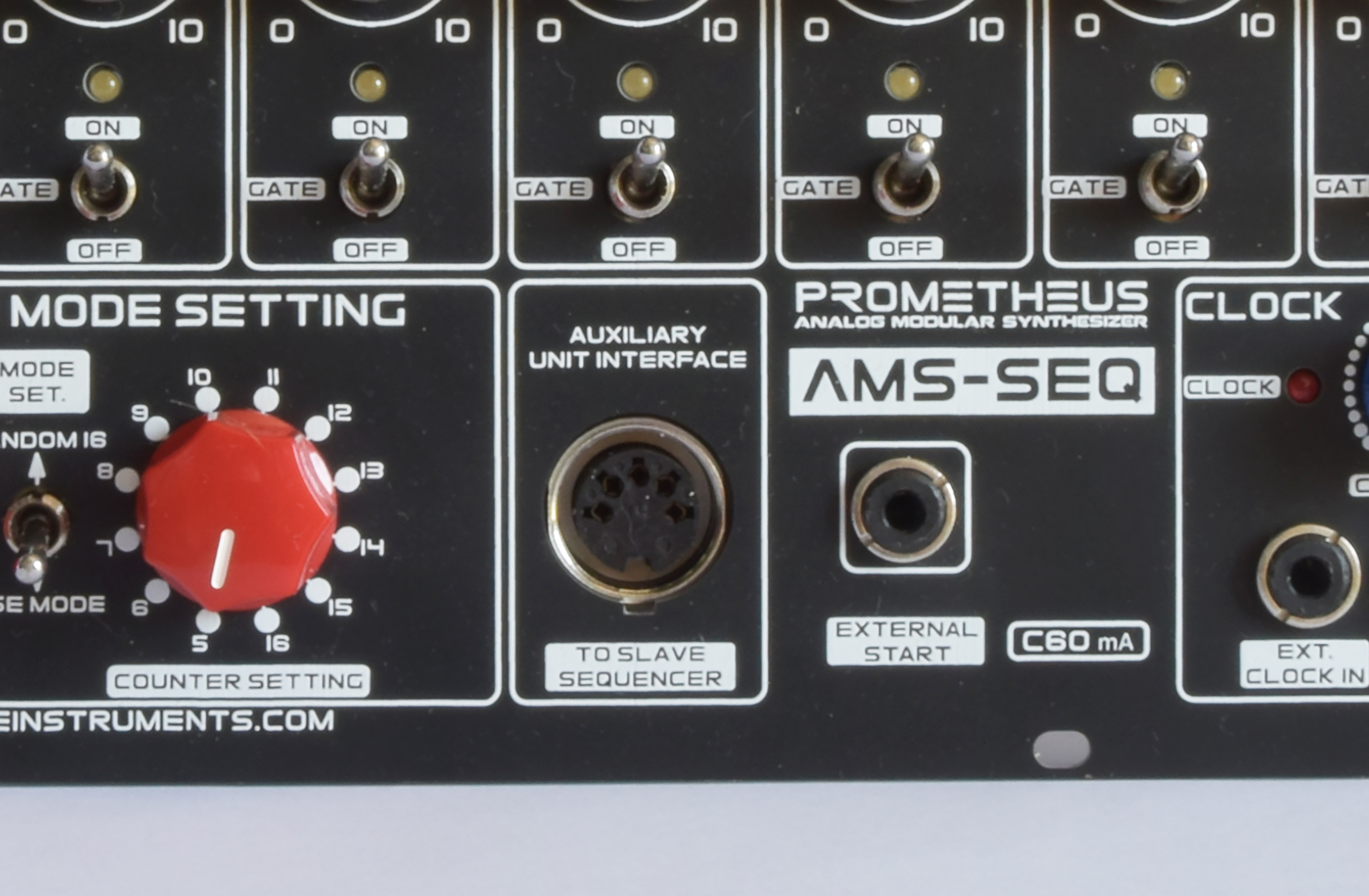

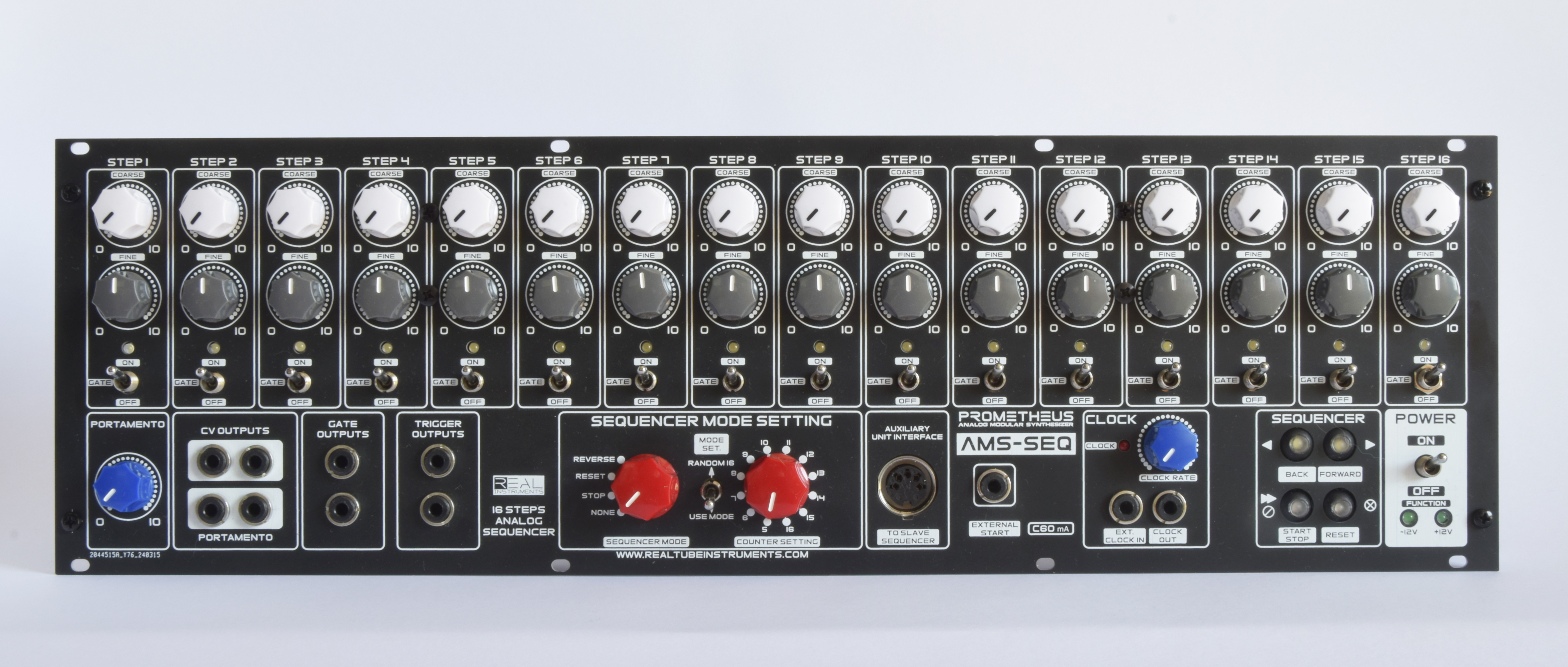

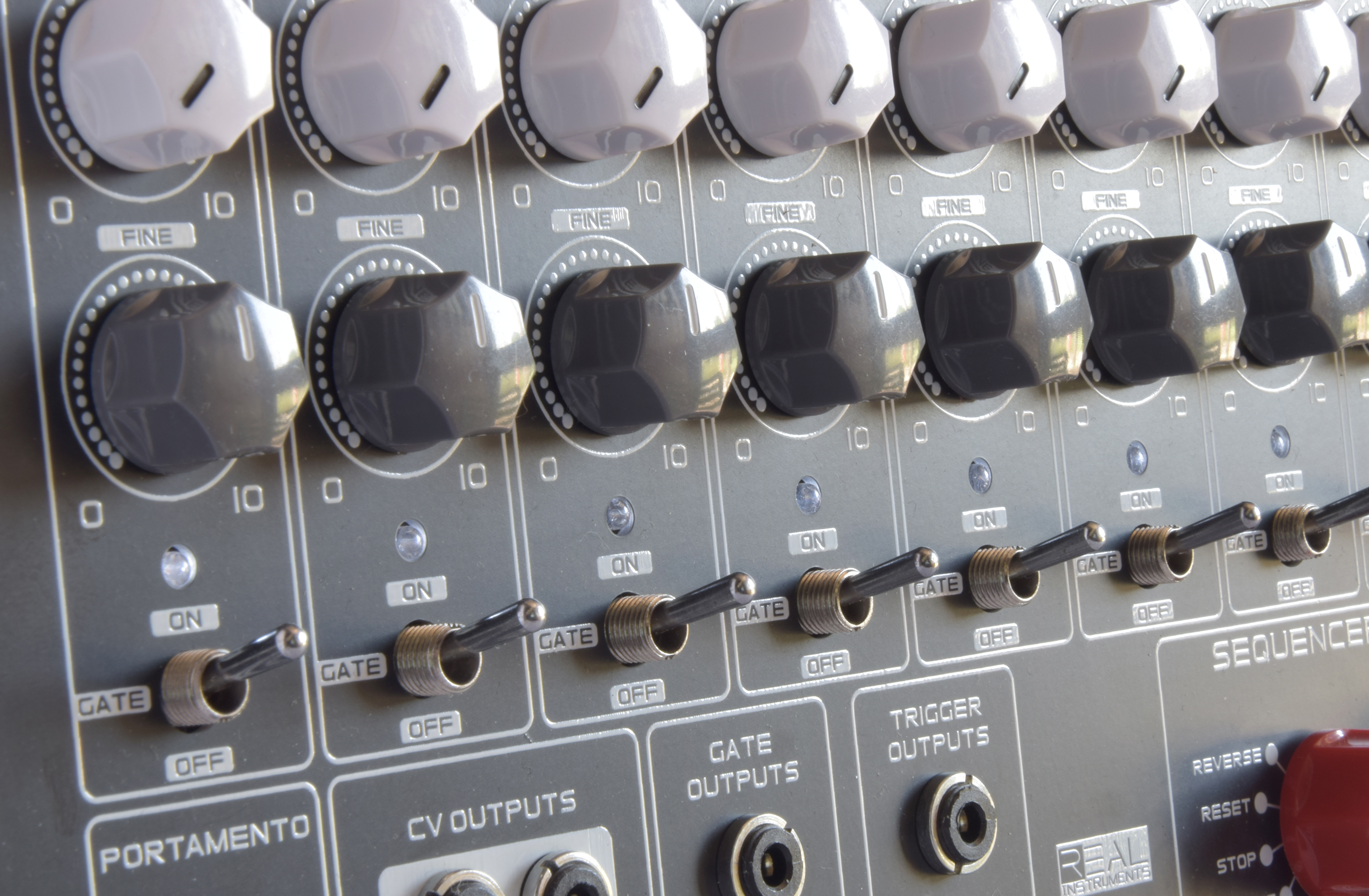

PROMETHEUS ANALOG MODULAR SYNTHESIZER AMS-SEQ – a compact yet rugged 84 HP 16 Steps Analog Sequencer, add-on module for your synthesizer. AMS-SEQ is a classic 16-step Sequencer. Each step allows COARSE and FINE adjustment of the CV Out up to +8 V. Each step is equipped with a GATE "inhibitor" to allow particular sequences. If GATE is ON, the SEQUENCER will output the pulse and the note will sound. If GATE is OFF no note will be generated. The CV OUT is divided into 4 outputs: 2 NORMAL and 2 with PORTAMENTO. The MODE SETTING allows the following options: NONE, all steps from 1 to 16 are executed in sequence. STOP, executes the number of steps selected and then stops at the last step. RESET, executes the selected number of steps and then restarts at step 1. REVERSE, executes the selected number of steps then repeats the sequence in reverse. AMS-SEQ can transmit and receive external CLOCK pulses. The internal CLOCK allows steps from 1.2 Hz to 40.6 Hz. The CV OUT can generate tones of up to 8 octaves with control voltage up to +8 V. The particular RANDOM function creates random sequences of STEPS based on the number selected with COUNTER SETTING. The 5 pole DIN socket allows you to connect external SLAVE SEQUENCER units to AMS-SEQ (soon available for sale) Featuring a 10-pin IDC connector and advanced protections, this module is your ticket to a simplified and efficient setup. Handcrafted with precision and great care at Real Instruments, it is the great solution for your modular synthesizer needs.
