100% Fully Analogue Ring Modulator.

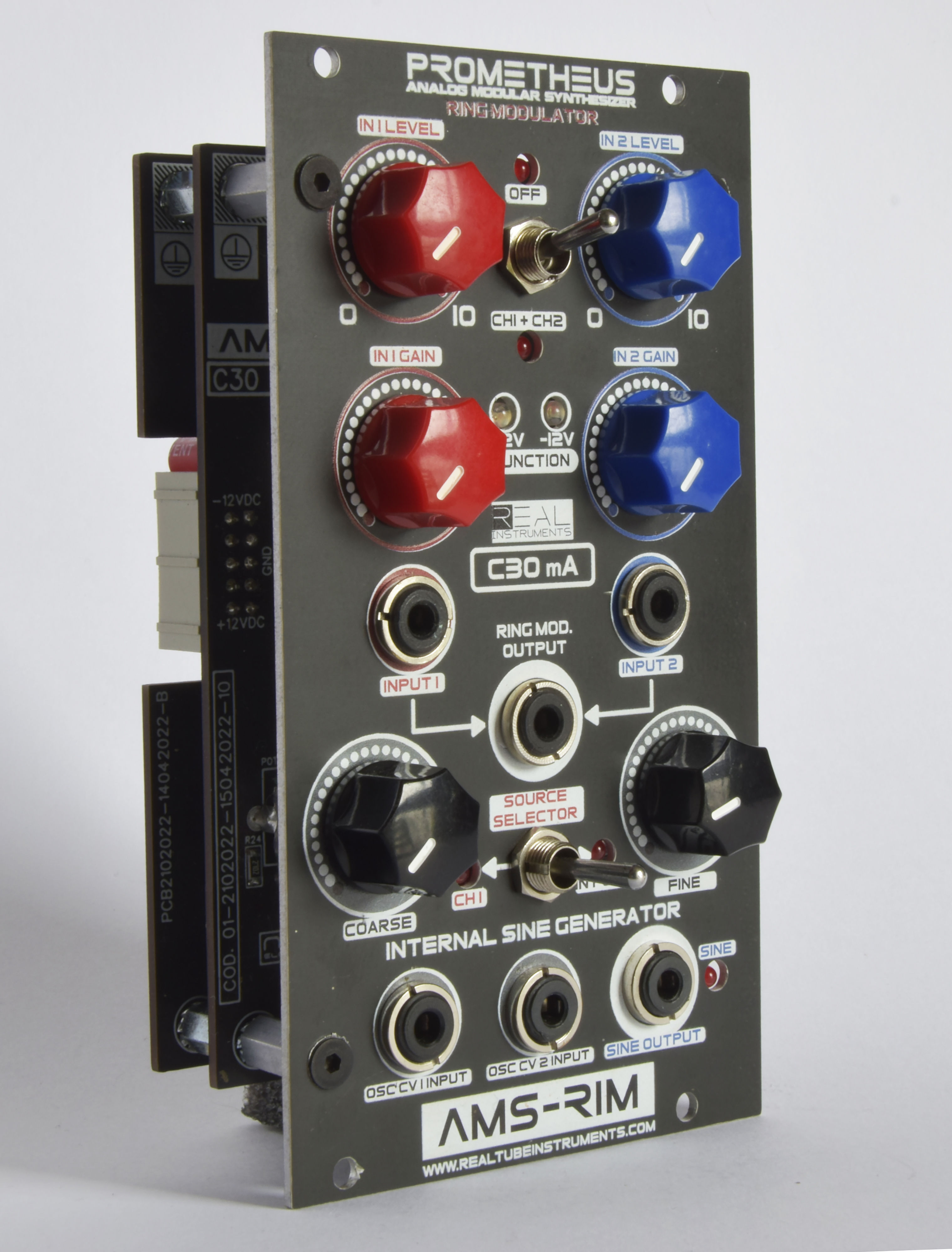

PROMETHEUS ANALOG MODULAR SYNTHESIZER AMS-RIM – a compact yet rugged 14 HP Ring Modulator, add-on module for your synthesizer. It AMS-RIM is a SONIC MULTIPLIER and is a great addition to any modular synth project. By multiplying the signals you can emulate the sounds of bells. It has two mixable inputs with gain from 1 to 100. An internal voltage controllable sinusoidal oscillator. 1 channel or 1+1 channel mode. Featuring a 10-pin IDC connector and advanced protections, this module is your ticket to a simplified and efficient setup. Handcrafted with precision and great care at Real Instruments, it is the great solution for your modular synthesizer needs.

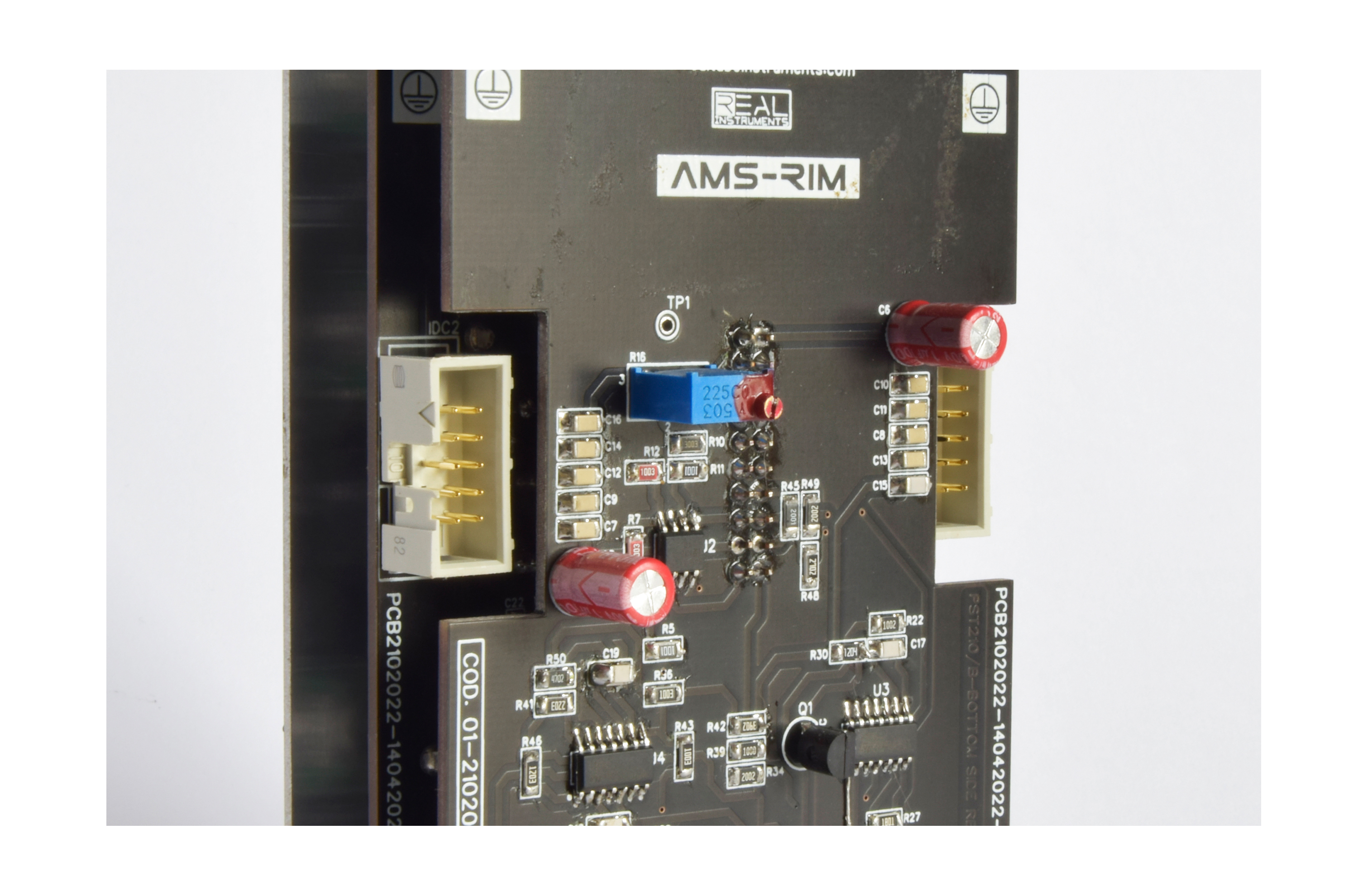

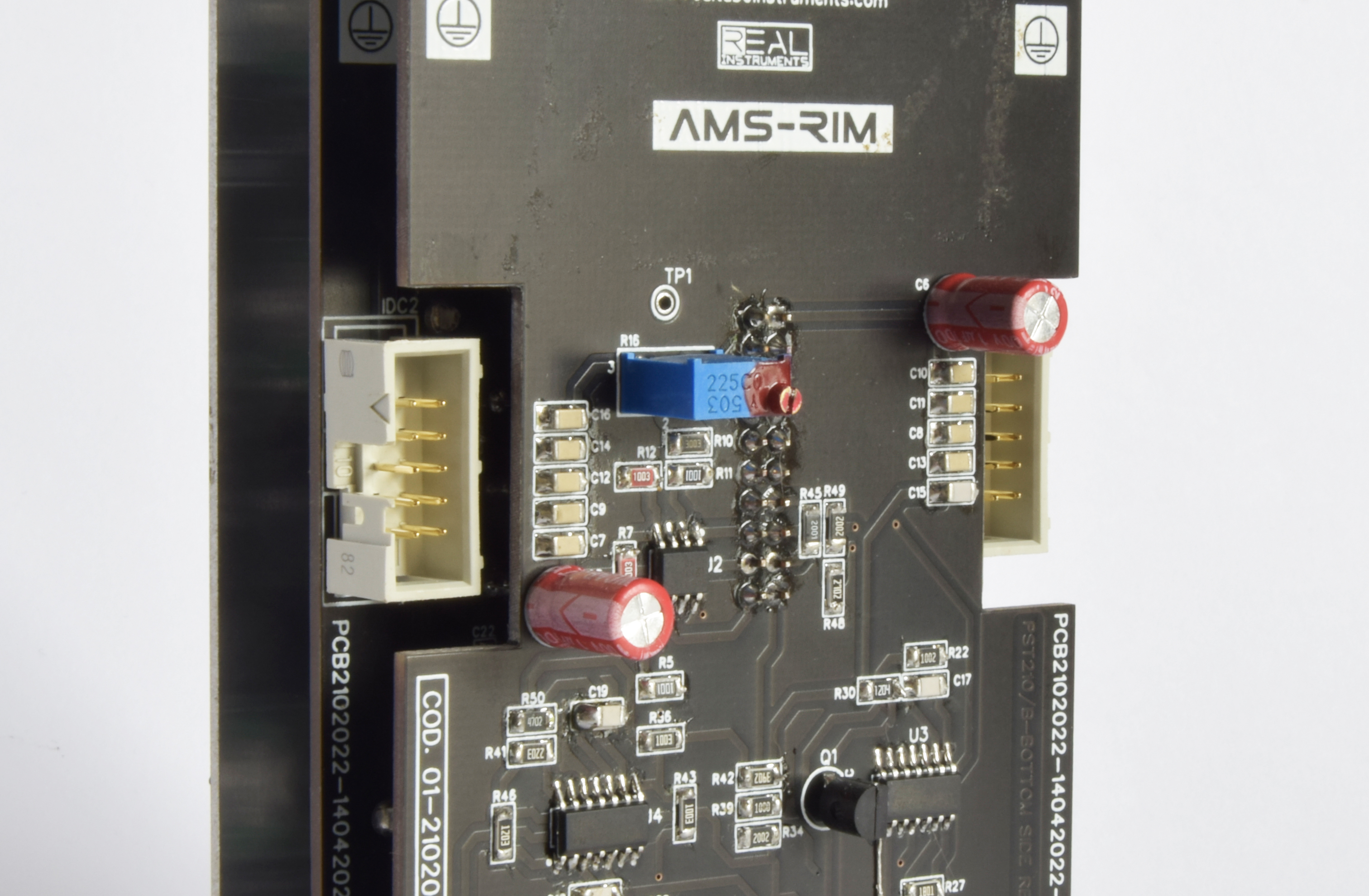

Made internally in Real Instruments laboratories with great care and precision. Consisting of precision Ring Modulator of the highest quality. Two "function" LEDs allow you to constantly monitor the two main voltages: +12 VDC and -12VDC. The 10-pin IDC connector allows you to "cascade" connect many modules up to a maximum of 1500 mA.
Handcrafted in our laboratory with a delivery
time of 15 days from order. 12 months
warranty (with invoice).
(We will be able, in the near future, to
speed up delivery times as we increase our production.
We are a small workshop and put a lot of effort into
what we build)

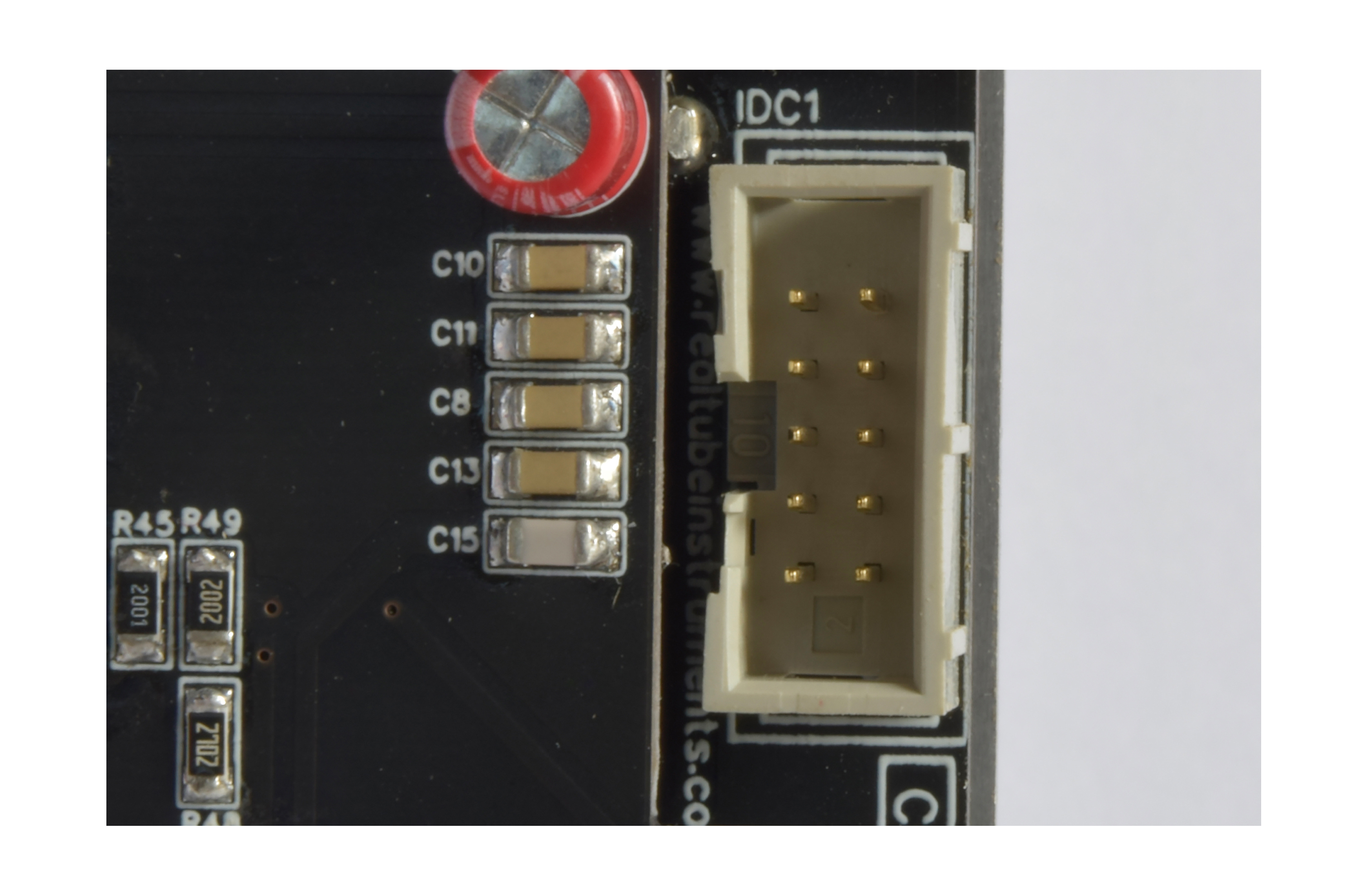

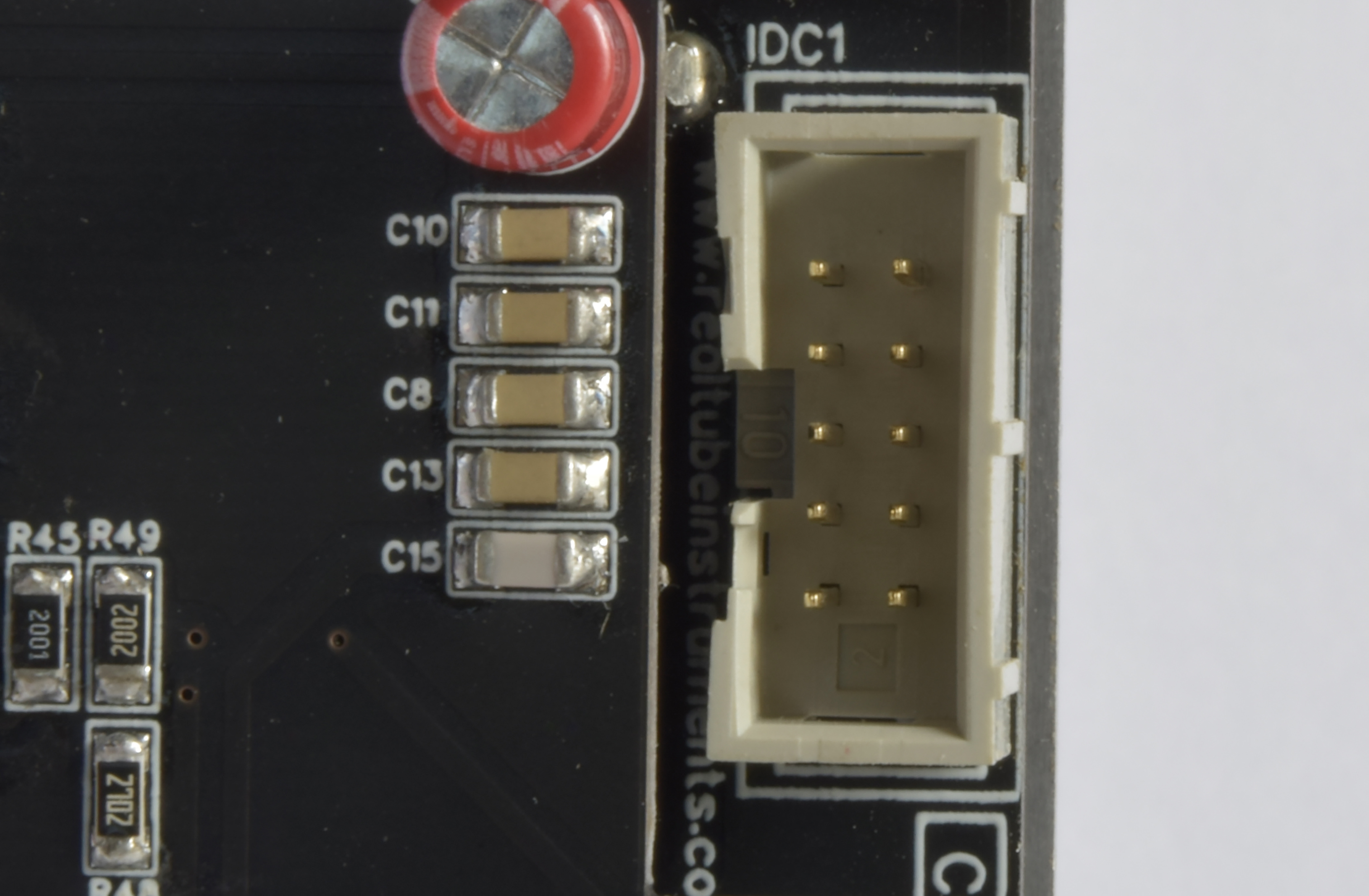

| -Supply Input: | +/-12 VDC - 30 mA (10 pins IDC connector - see picture) | ||
| -Output: | Multiplied Audio Output, Sinusoidal Wave | ||
| -Range: | 2.4 Hz - 11.4 KHz
/ 10 Vpp - 4.180 Vrms (internal
oscillator) 6 octave Control Voltage range | ||
| -Connections: | 2 x AUDIO IN jack 3.5
connector RING MOD output jack 3.5 connector 2 x V/oct OSC CV INPUTS jack 3.5 connectors 1 x SINE OUTPUT jack 3.5 connector | ||
| -Dimensions: | 3 Rack Unit, 14 HP | ||
| -Environment: | Operating, 0°C to +50°C Storage, -20°C to +60°C |
||
| -Price: | |
||
