100% High Stability PSU.
PROMETHEUS ANALOG MODULAR SYNTHESIZER AMS-PSU – a compact yet rugged 8 HP power module that can power your modular synthesizer. This power module is perfect for eurorack modular synthesizers up to a total of 1500 mA. Thanks to its low profile and high efficiency it can power multiple modules without interruption. Featuring a 10-pin IDC connector and advanced protections, this power module is your ticket to a simplified and efficient setup. Handcrafted with precision and great care at Real Instruments, it is the great solution for your modular synthesizer needs.

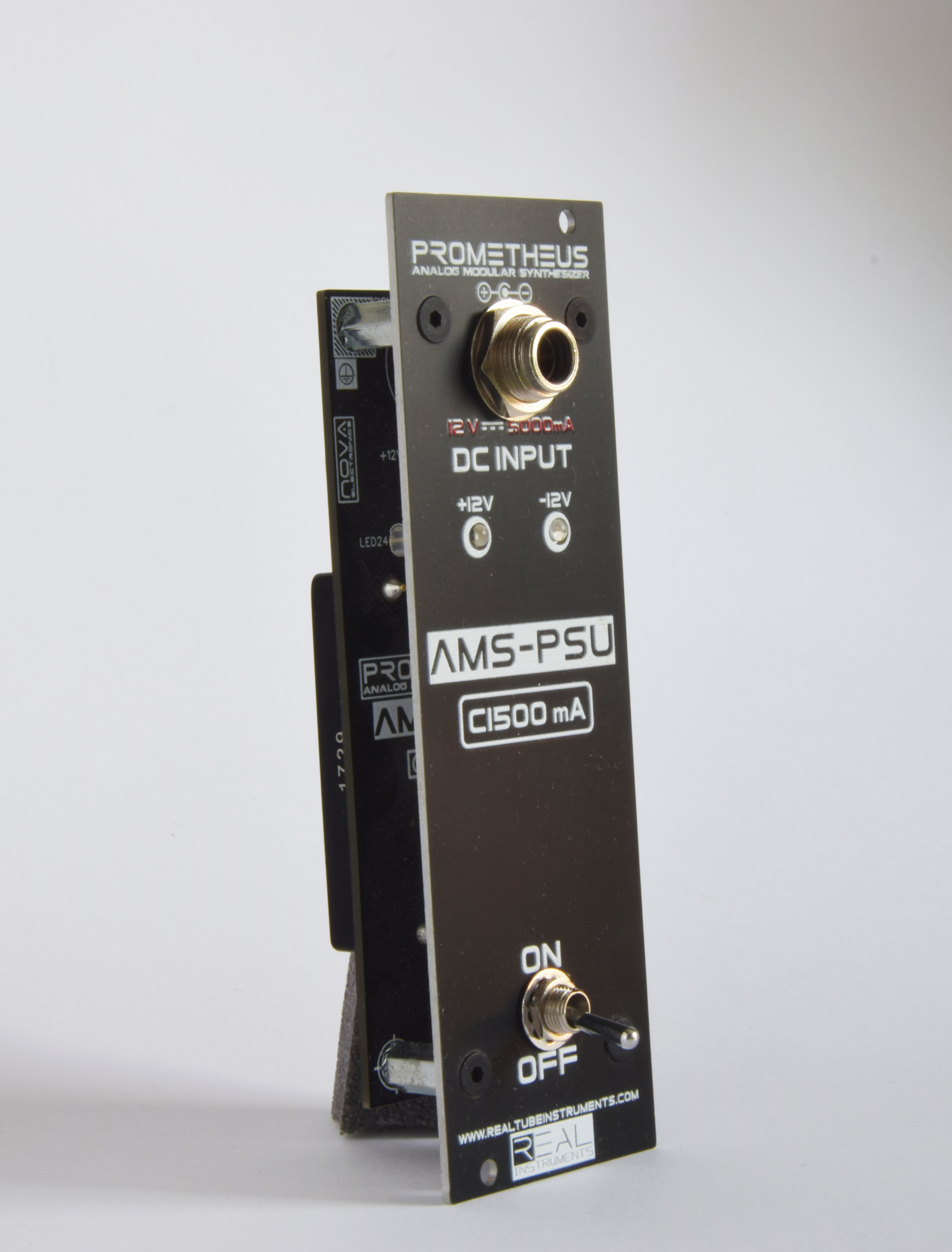

Made internally in Real Instruments laboratories with great care and precision. Consisting of a DC-DC converter of the highest quality and with components reduced to a minimum. Two "function" LEDs allow you to constantly monitor the two voltages produced: +12 VDC and -12VDC. The 10-pin IDC connector allows you to "cascade" connect many modules up to a maximum of 1500 mA.
Handcrafted in our laboratory with a delivery
time of 15 days from order. 12 months
warranty (with invoice).
(We will be able, in the near future, to
speed up delivery times as we increase our production.
We are a small workshop and put a lot of effort into
what we build)
| -Input: | 100-240 VAC 50/60 Hz

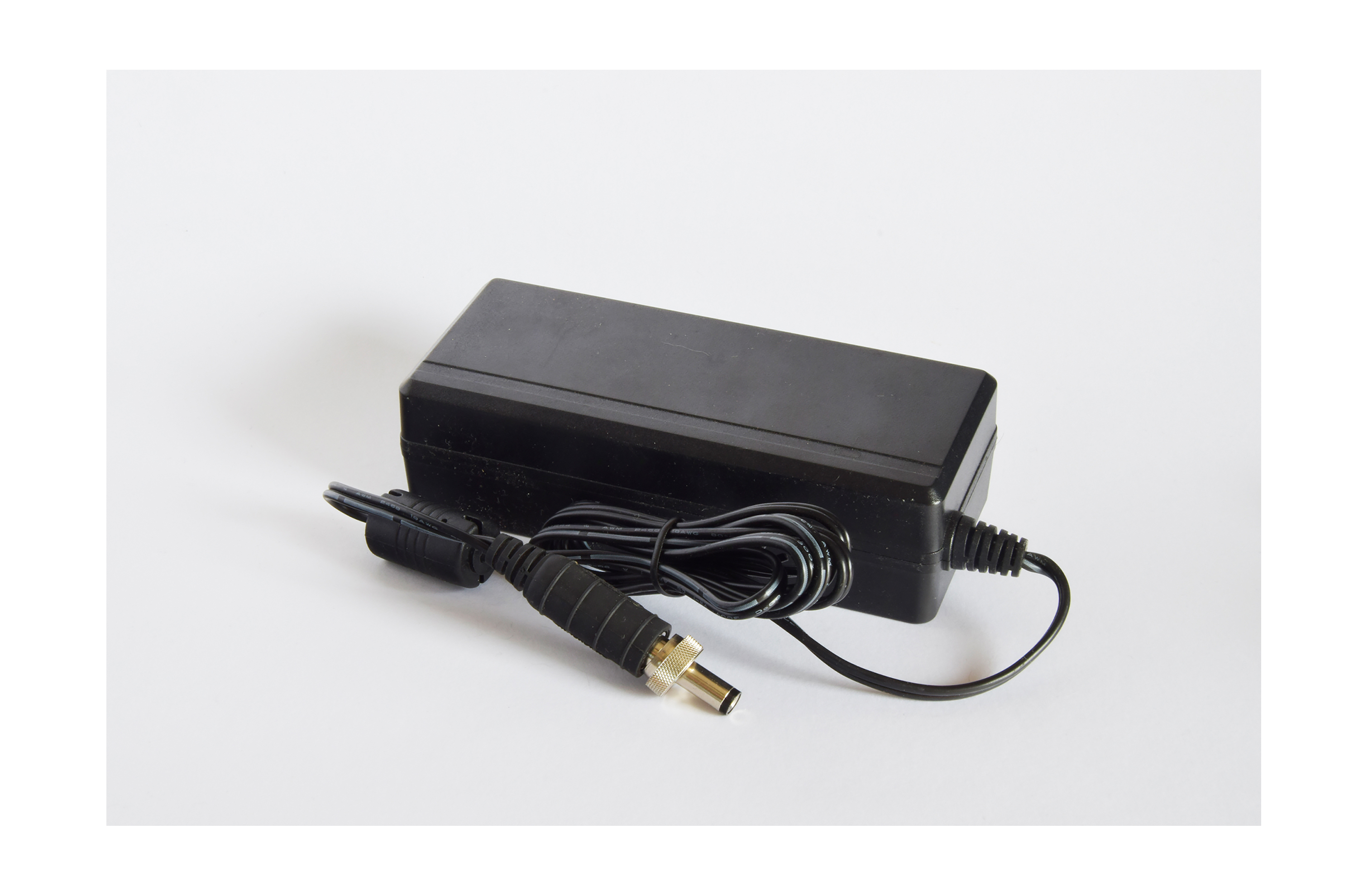

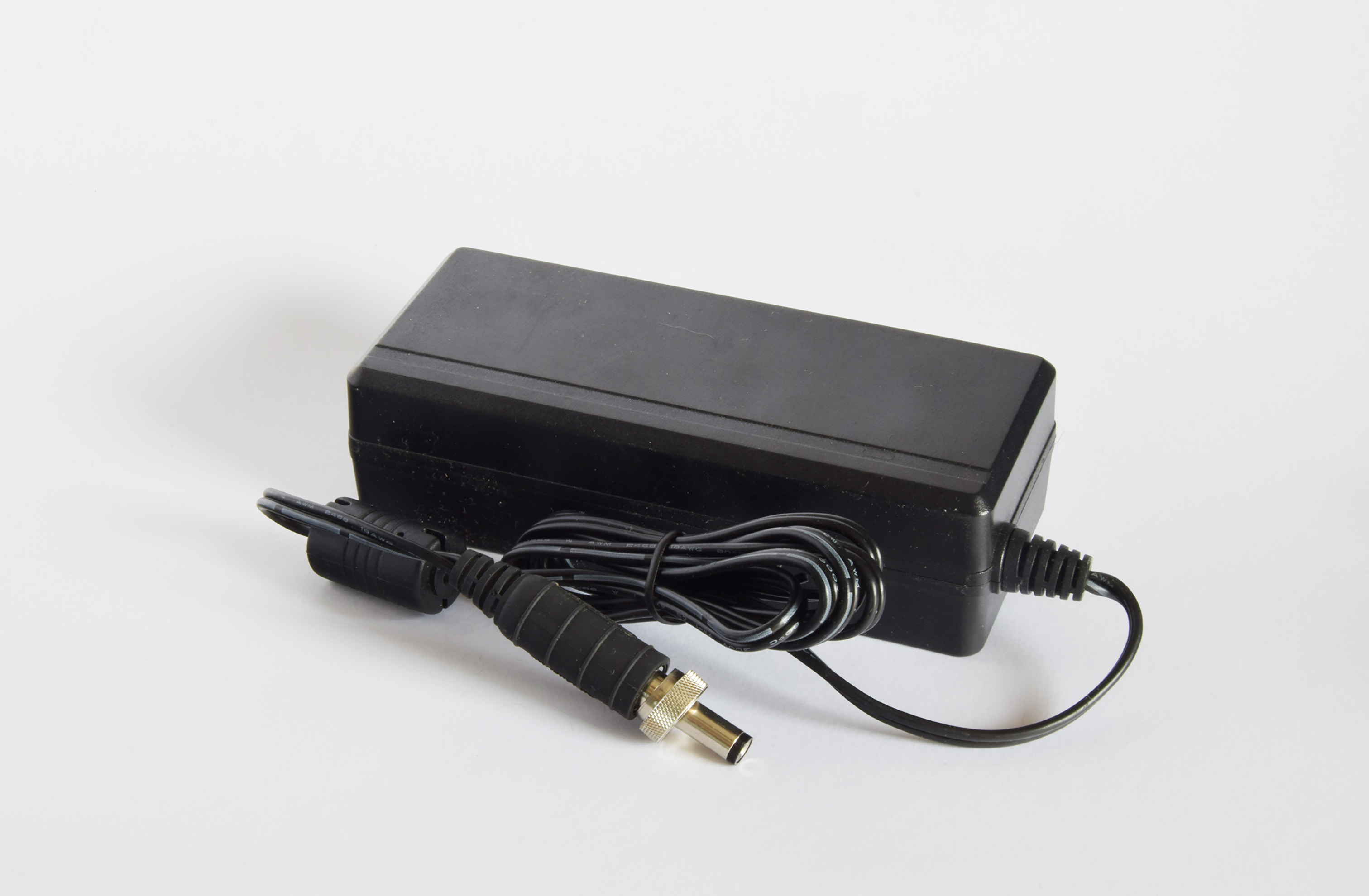

1.5A (External Switching Power Supply) 12 VDC 5000mA Max (Eurorack AMS-PSU) |
||
| -Output: | +12 VDC -12 VDC 1500mA (Eurorack

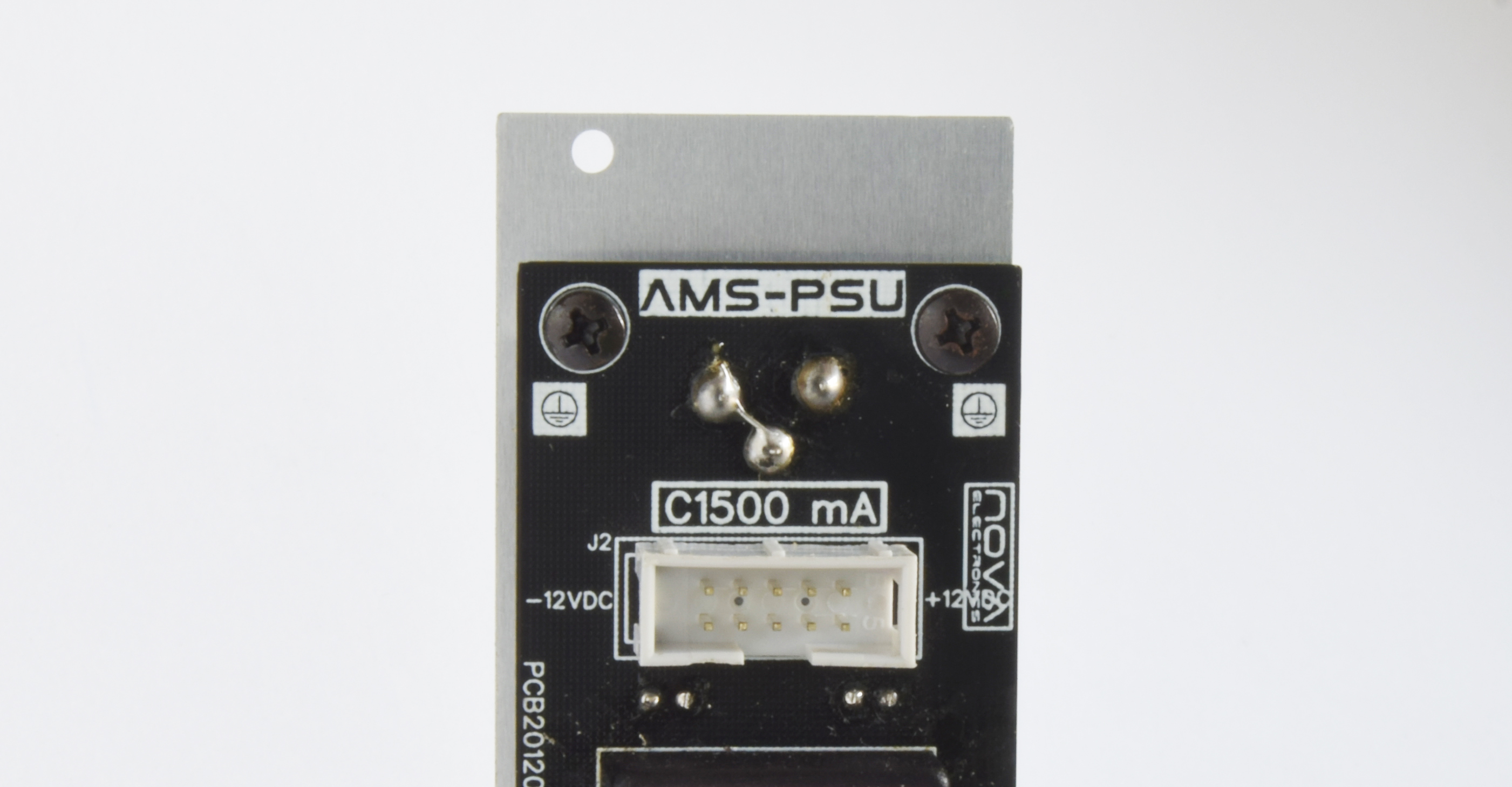

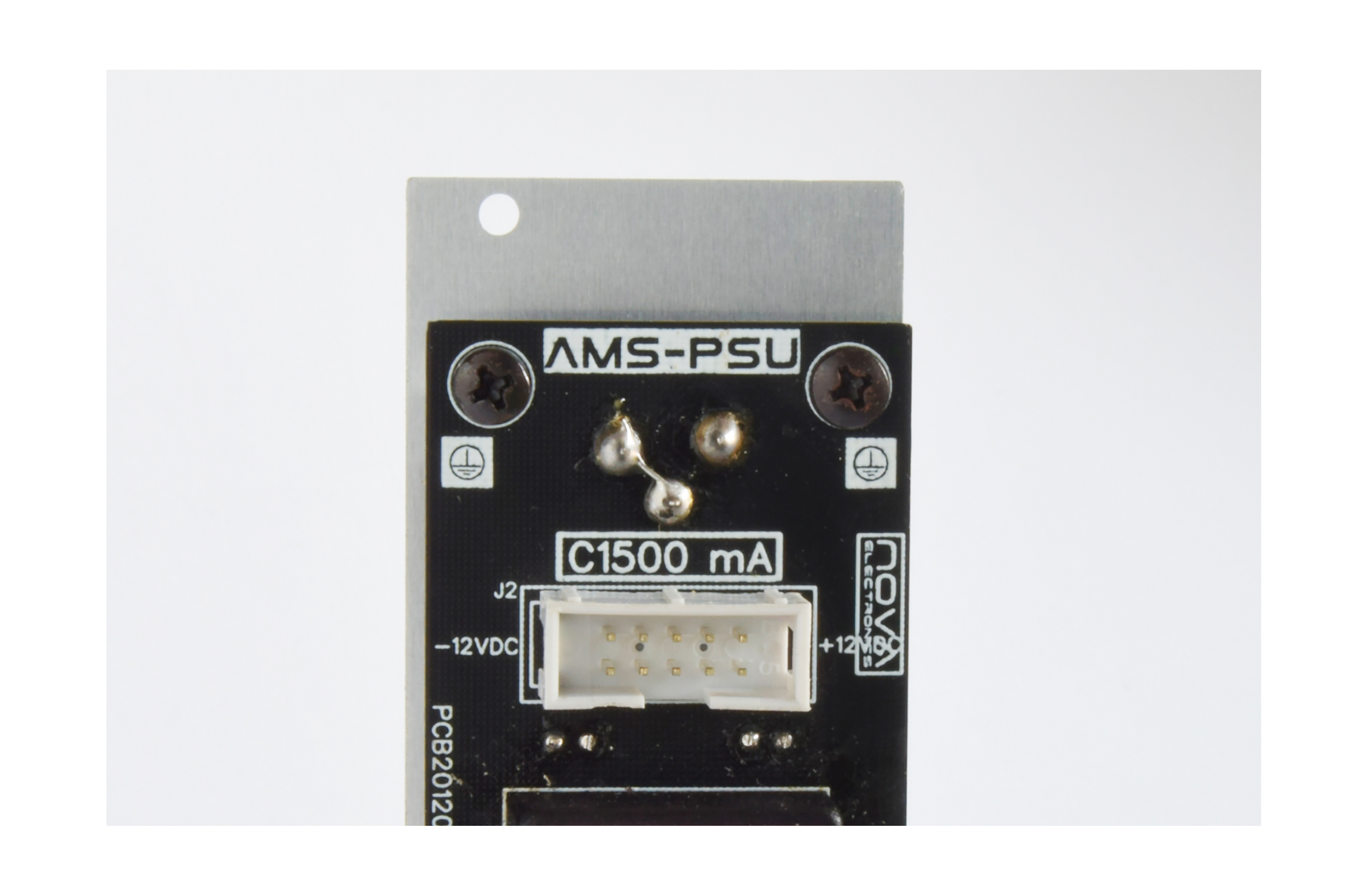

AMS-PSU) 10 Pins IDC Connector (see picture) | ||
| -Dimensions: | 3 Rack Unit, 8 HP | ||
| -Environment: | Operating, 0°C to +50°C Storage, -20°C to +60°C |
||
| -Price: | |
||
