100% Fully Analogue Low Frequency Oscillator.

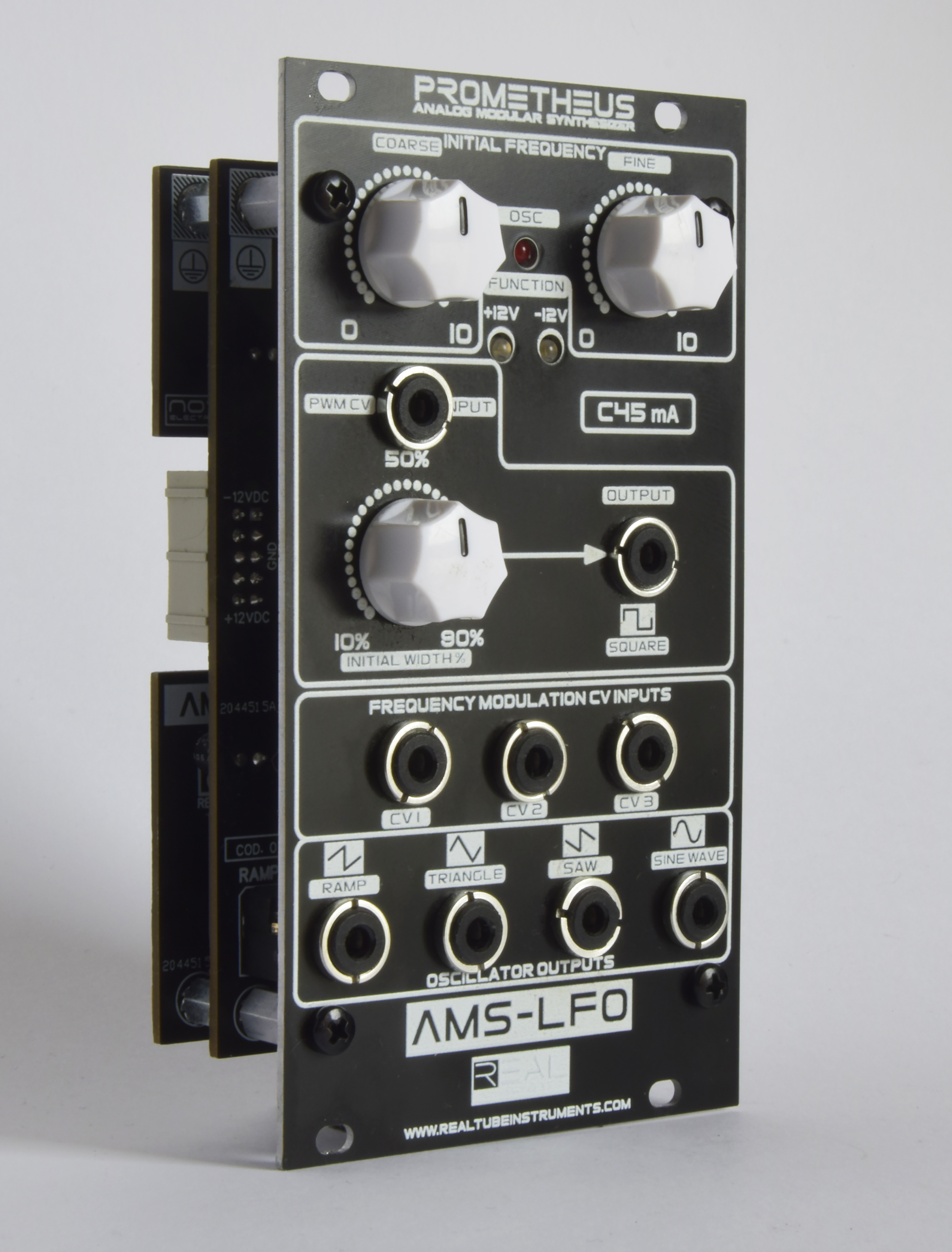

PROMETHEUS ANALOG MODULAR SYNTHESIZER AMS-LFO – a compact yet rugged 14 HP low and ultra-low frequency oscillator, basic module for your synthesizer. This LFO has 5 waveforms: square, ramp, triangle, saw and sine. The frequency range is from 0.008 Hz (one cycle exceeds 2 MINUTES) up to 600 Hz. 3 CV inputs are added to the PVM (for Square Duty-Cycle control) for the control voltage. Featuring a 10-pin IDC connector and advanced protections, this module is your ticket to a simplified and efficient setup. Handcrafted with precision and great care at Real Instruments, it is the great solution for your modular synthesizer needs.

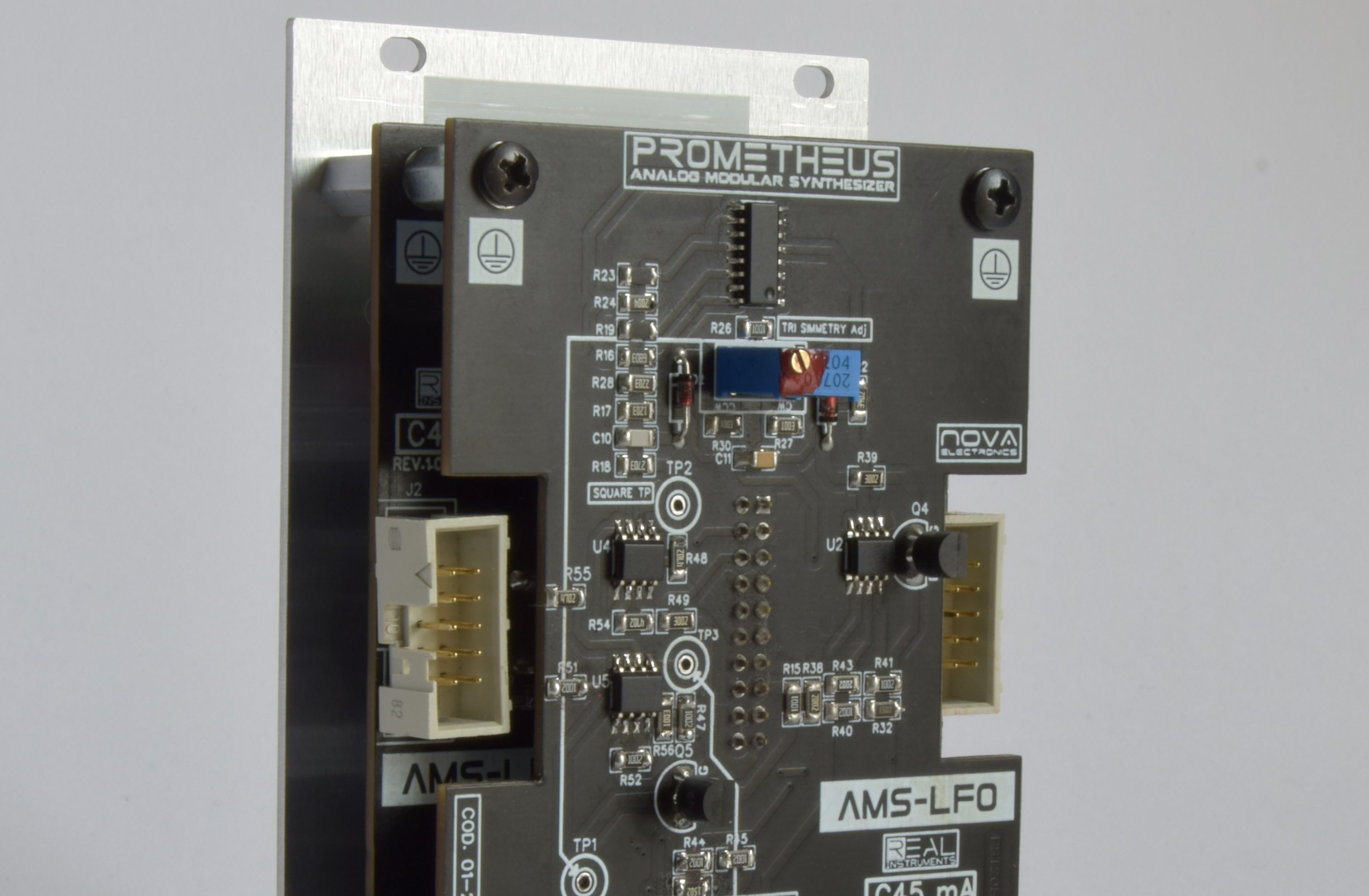

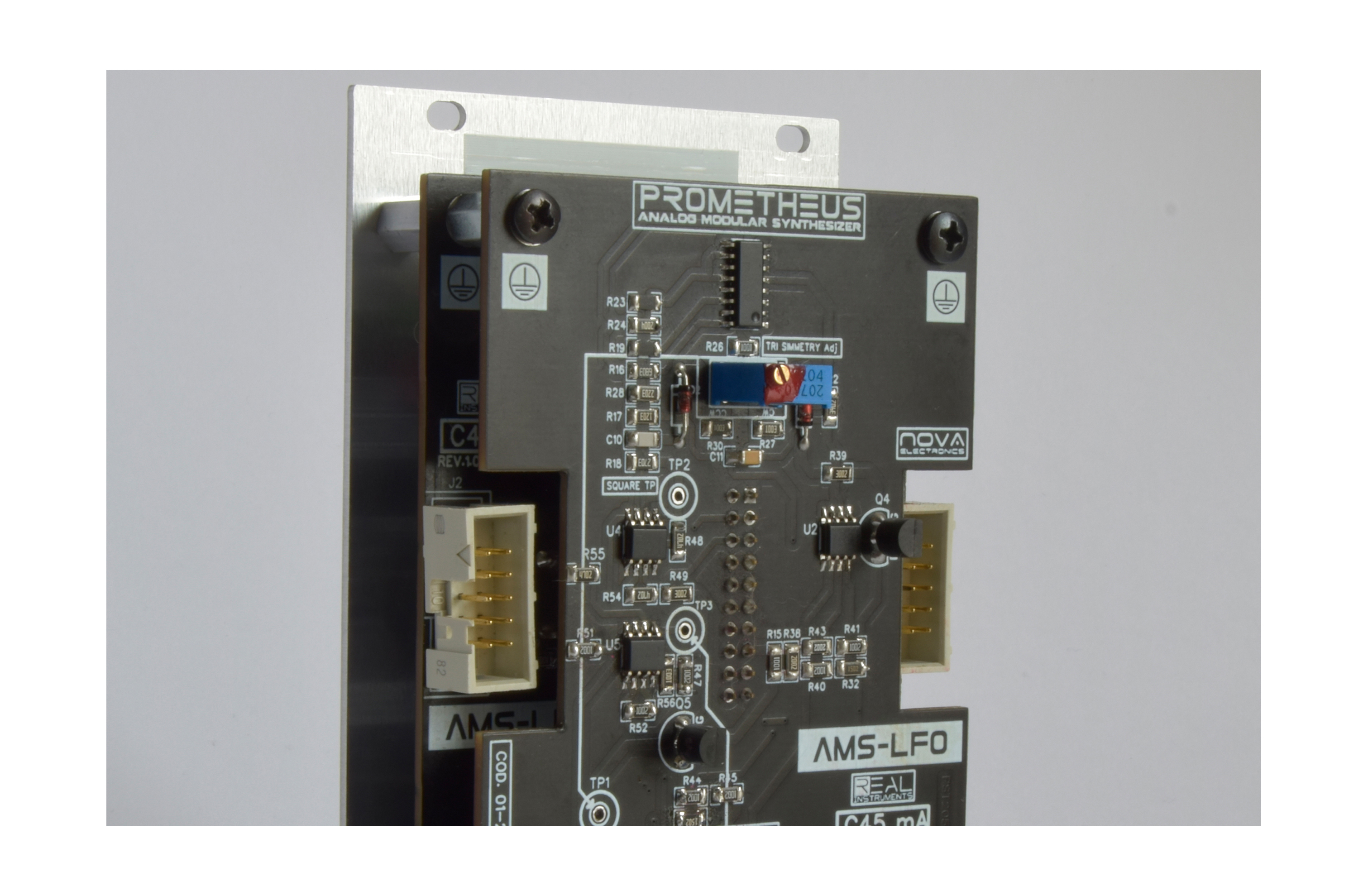

Made internally in Real Instruments laboratories with great care and precision. Consisting of precision low and ultra-low frequency Oscillator of the highest quality. Two "function" LEDs allow you to constantly monitor the two main voltages: +12 VDC and -12VDC. The 10-pin IDC connector allows you to "cascade" connect many modules up to a maximum of 1500 mA.
Handcrafted in our laboratory with a delivery
time of 15 days from order. 12 months
warranty (with invoice).
(We will be able, in the near future, to
speed up delivery times as we increase our production.
We are a small workshop and put a lot of effort into
what we build)

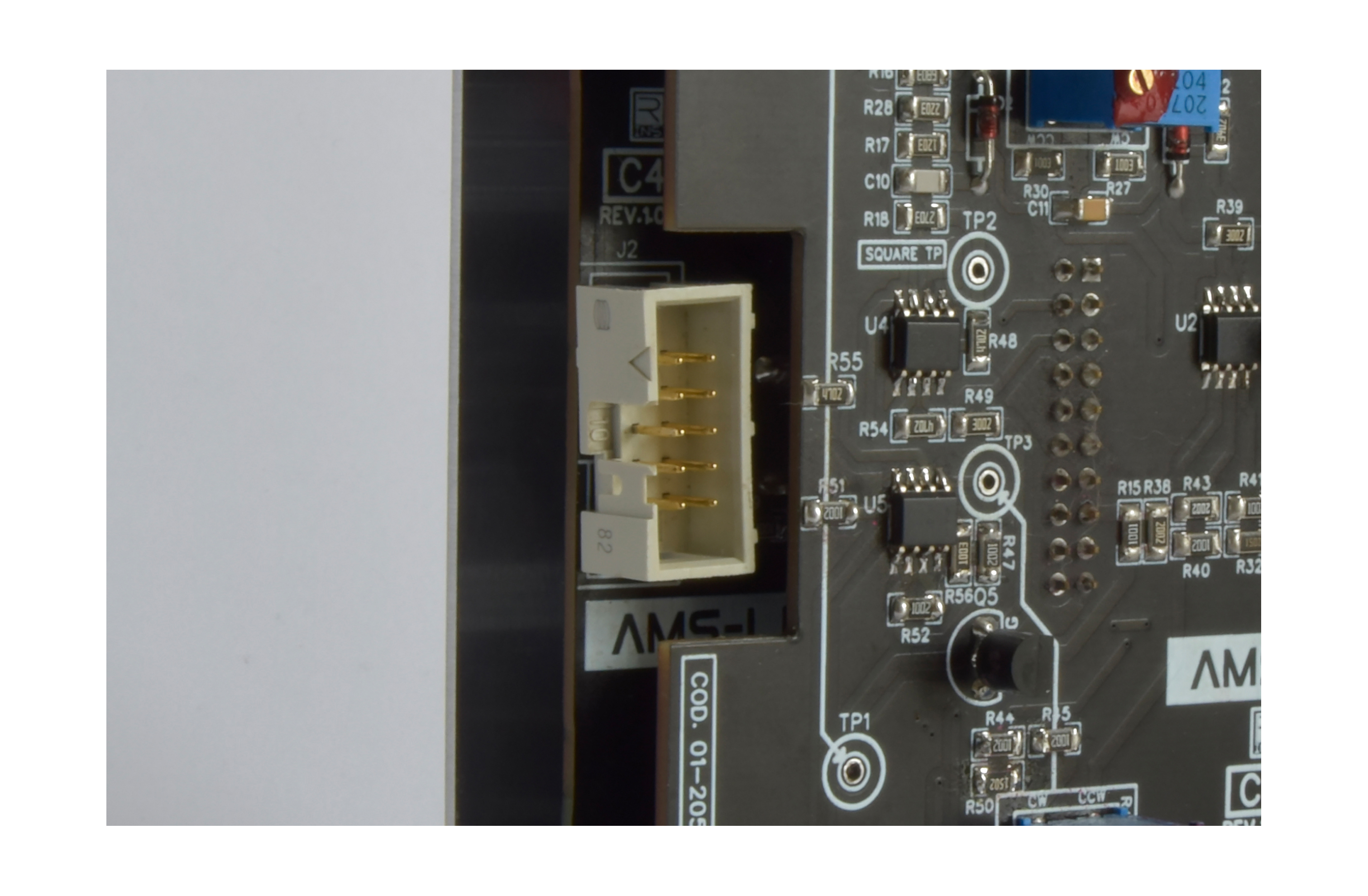

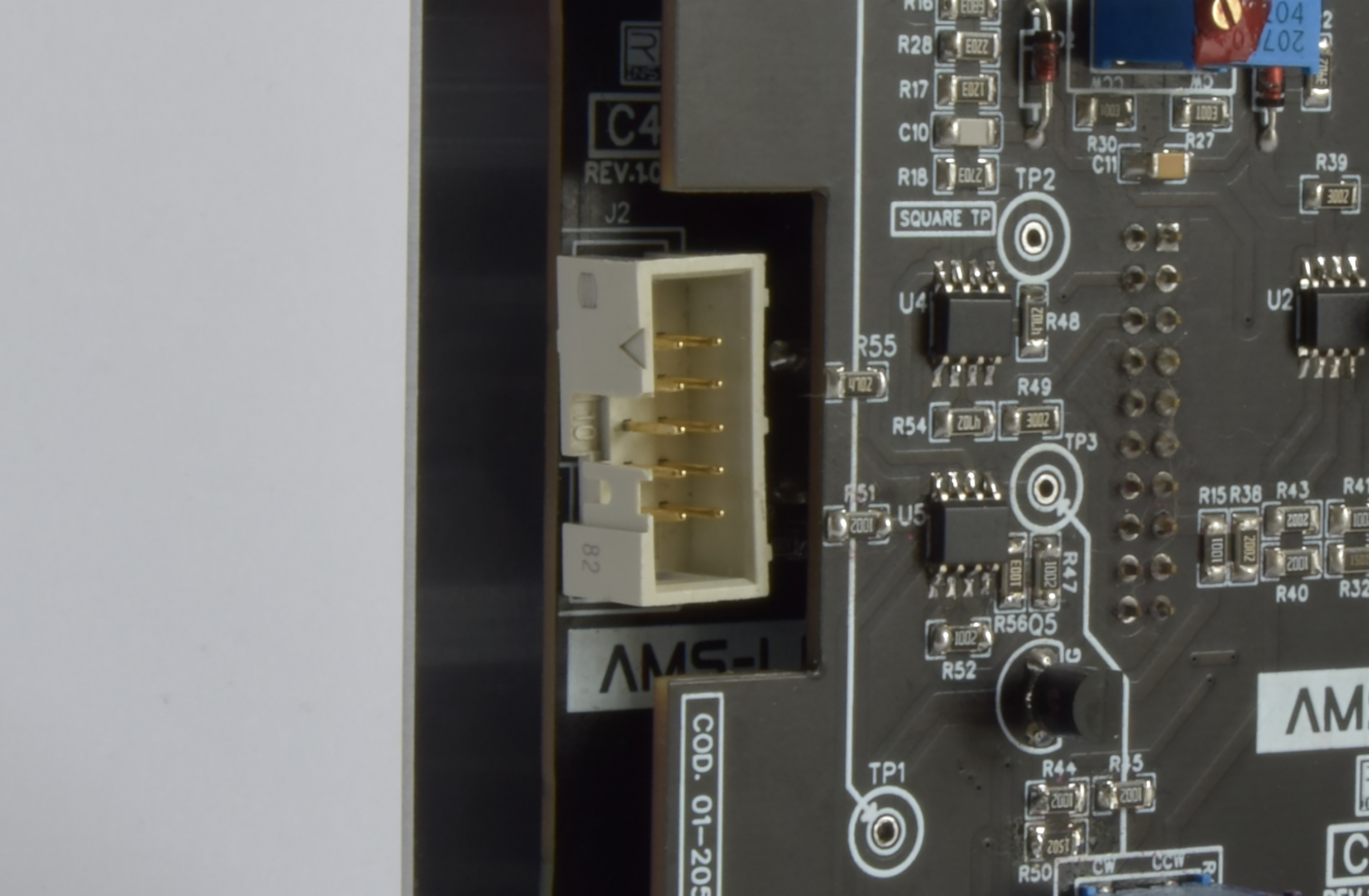

| -Supply Input: | +/-12 VDC - 30 mA (10 pins IDC connector - see picture) | ||
| -Waves Output: | Square (PWM controlled), Ramp, Triangle, Saw, Sine (separated outputs) | ||
| -Range: | 0.008 Hz - 600 Hz
/ 10 Vpp - 4.180 Vrms Not Linear Control Voltage range | ||
| -Connections: | PWM CV input jack 3.5 connector 3 x not linear/oct CV INPUTS jack 3.5 connectors | ||
| -Dimensions: | 3 Rack Unit, 14 HP | ||
| -Environment: | Operating, 0°C to +50°C Storage, -20°C to +60°C |
||
| -Price: | |
||
