100% Fully Analogue CV/Gate Expander.

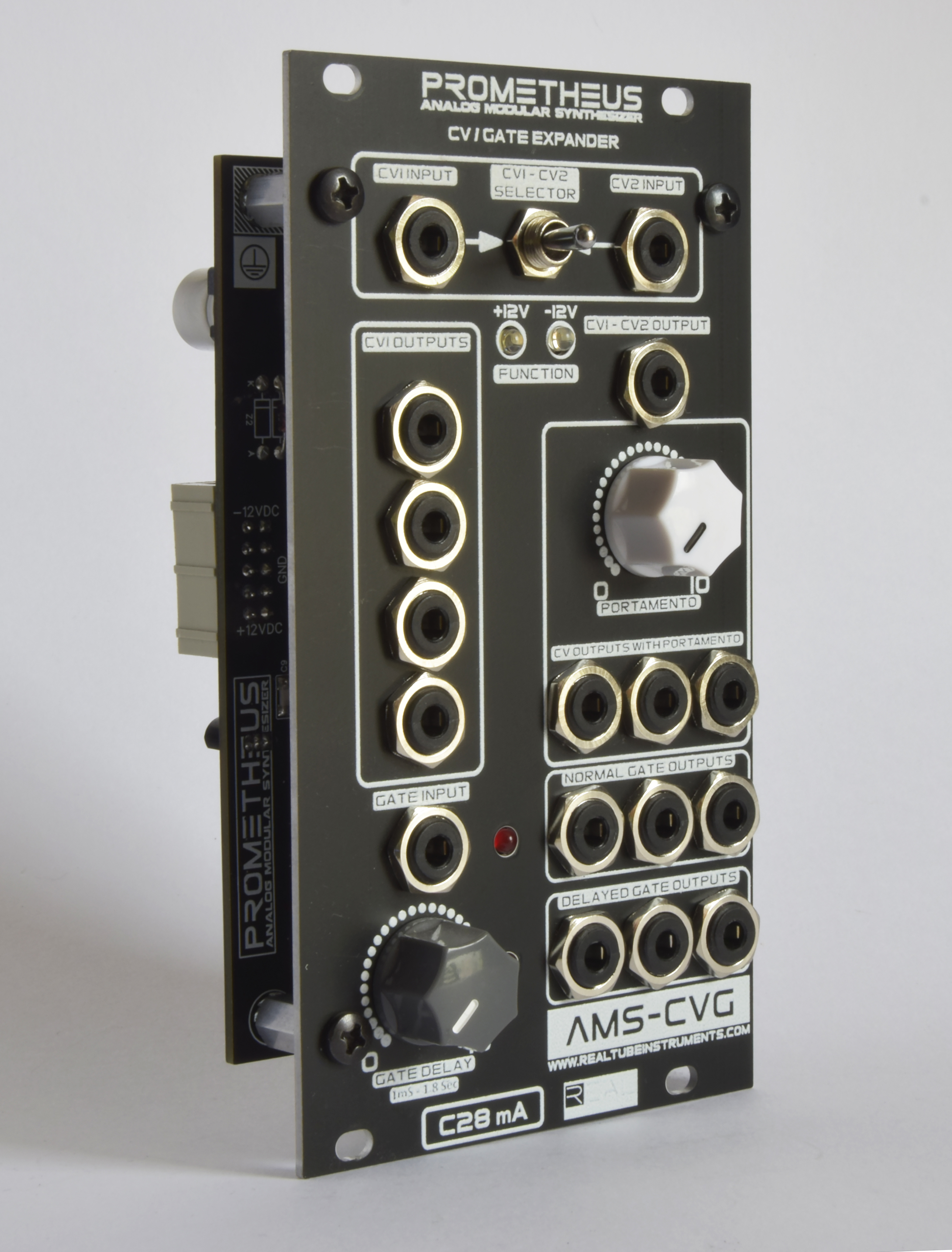

PROMETHEUS ANALOG MODULAR SYNTHESIZER AMS-CVG – a compact yet rugged 14 HP CV/Gate Expander, add-on module for your synthesizer. This CV/Gate Expander has the ability to duplicate your CV and GATE signals without altering their amplitude. Two selectable simultaneous CV INPUT with mixed output. 4 CV OUT linear and 3 CV OUT with PORTAMENTO. 3 linear GATE OUT and 3 delayed GATE OUT from 1 mS to 1.8 seconds. Two LEDs allow you to monitor the Gate Out and the delay time. Featuring a 10-pin IDC connector and advanced protections, this power module is your ticket to a simplified and efficient setup. Handcrafted with precision and great care at Real Instruments, it is the great solution for your modular synthesizer needs.
Made internally in Real Instruments laboratories with great care and precision. Consisting of precision Cv/Gate Expander of the highest quality. Two "function" LEDs allow you to constantly monitor the two main voltages: +12 VDC and -12VDC. The 10-pin IDC connector allows you to "cascade" connect many modules up to a maximum of 1500 mA.
Handcrafted in our laboratory with a delivery
time of 15 days from order. 12 months
warranty (with invoice).
(We will be able, in the near future, to
speed up delivery times as we increase our production.
We are a small workshop and put a lot of effort into
what we build)

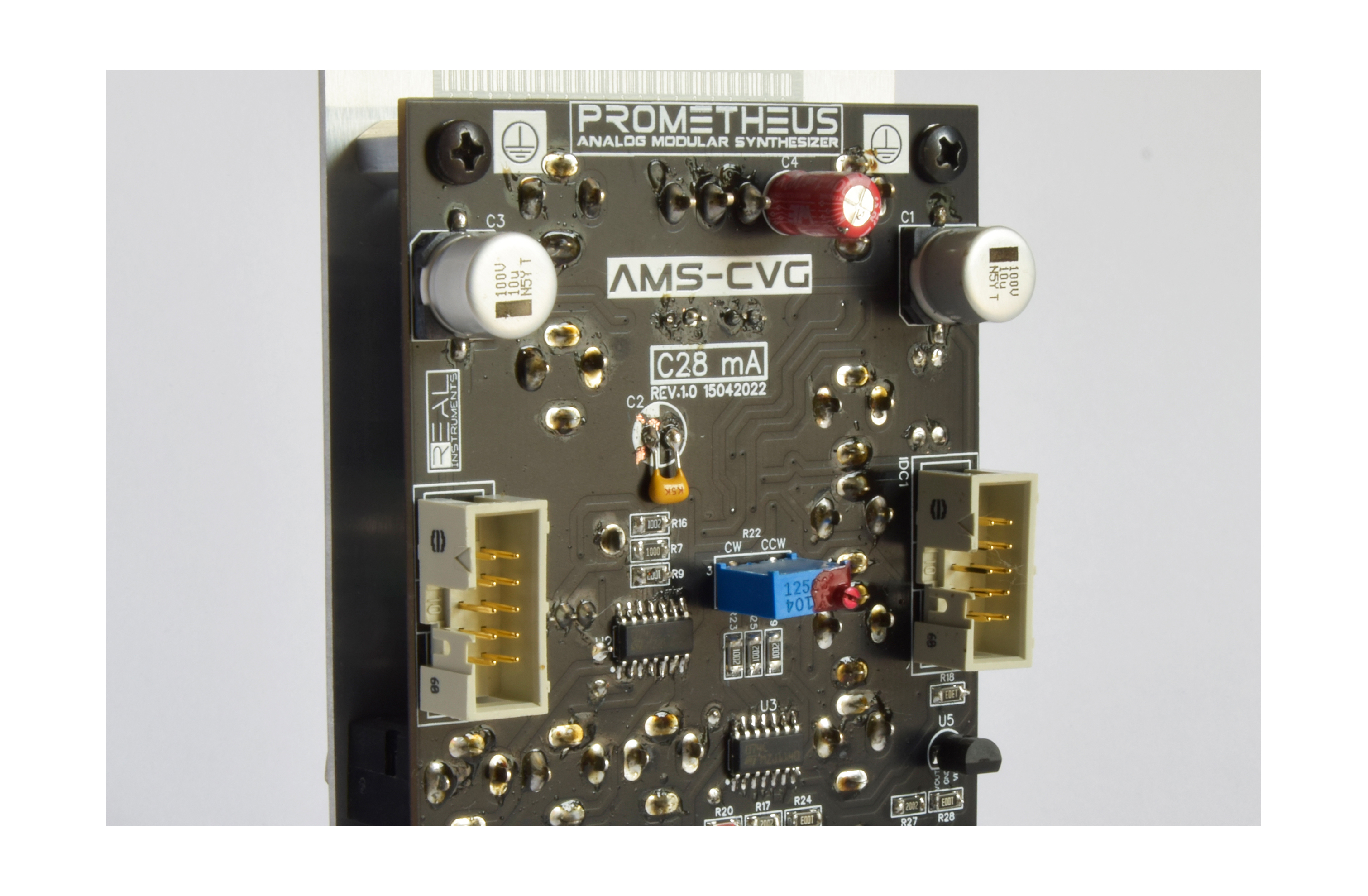

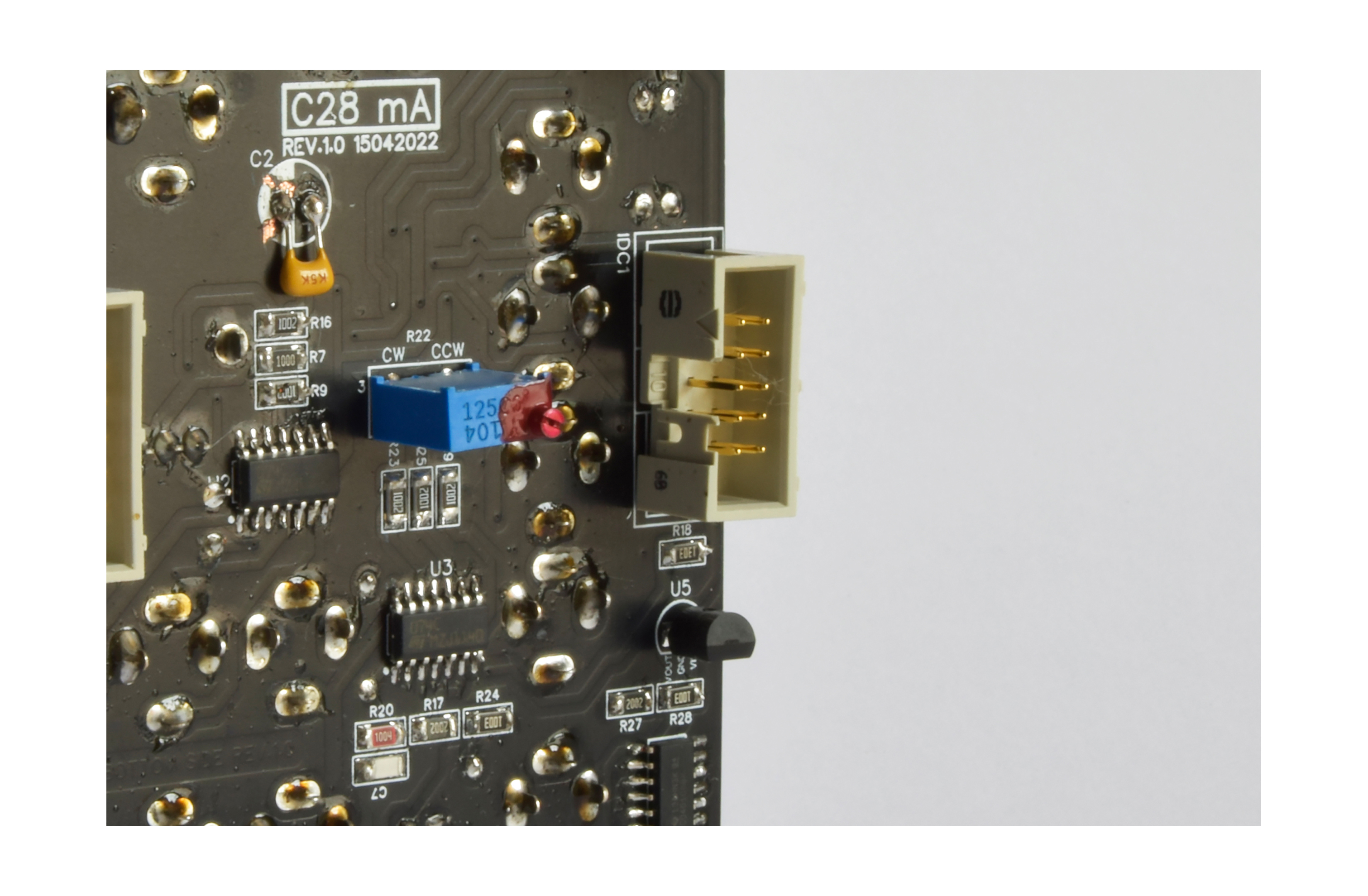

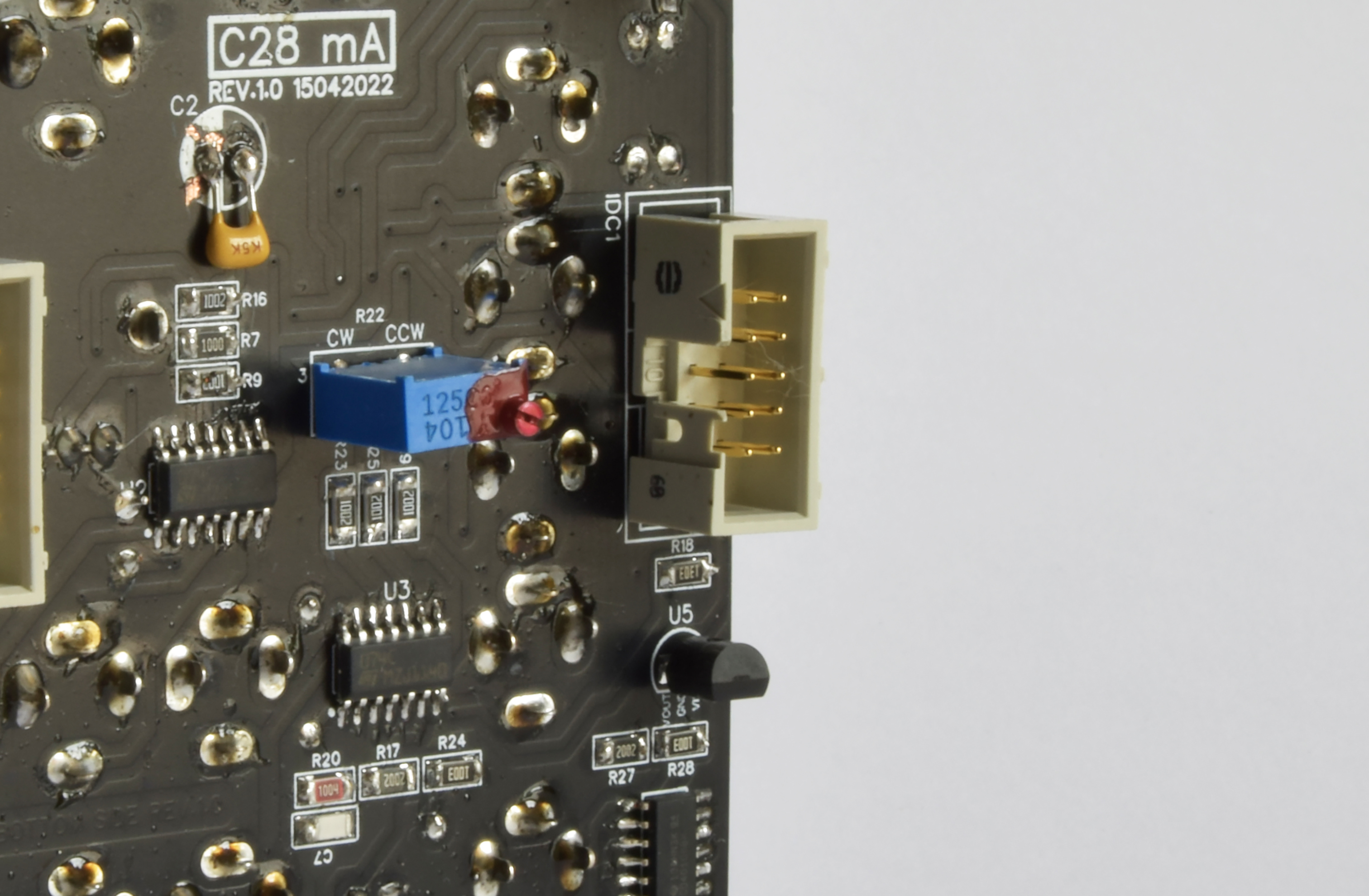

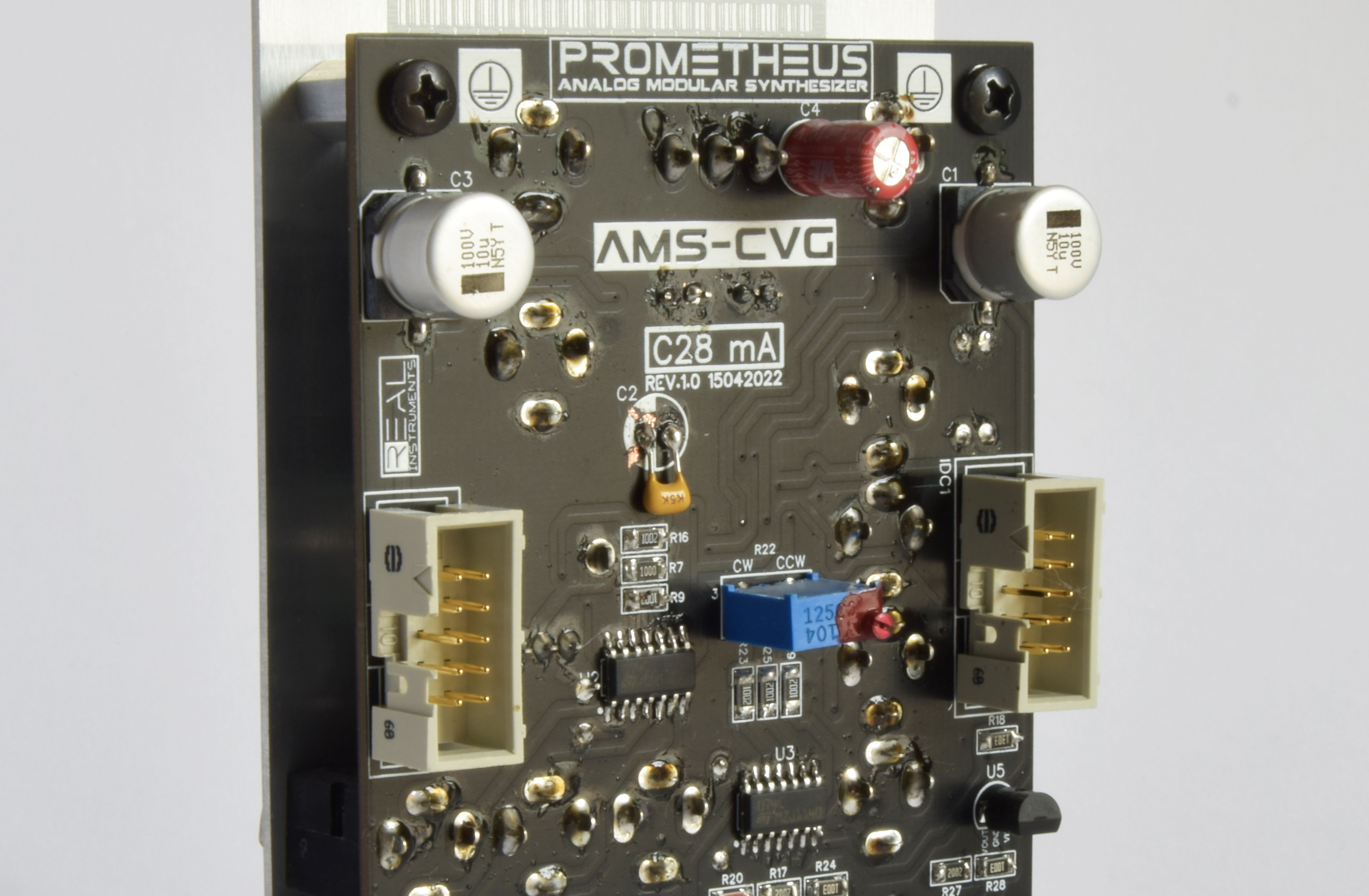

| -Supply Input: | +/-12 VDC - 28 mA (10 pins IDC connector - see picture) | ||
| -Output: | CV OUTPUTS: +/- 5.6 Vdc GATE OUTPUTS: + 10 Vdc | ||
| -Range: | GATE DELAY: 1 mS to 1.8 Seconds | ||
| -Connections: | 2 x CV INPUTS (selectable) jack 3.5
connectors 1 x GATE INPUT jack 3.5 connector 4 x linear CV OUTPUT jack 3.5 connectors 3 x CV OUTPUT with Portamento jack 3.5 connectors 3 x linear GATE OUTPUT jack 3.5 connectors 3 x delayed GATE OUTPUT jack 3.5 connectors | ||
| -Dimensions: | 3 Rack Unit, 14 HP | ||
| -Environment: | Operating, 0°C to +50°C Storage, -20°C to +60°C |
||
| -Price: | |
||
