100% Fully Analogue ADSR Envelope.

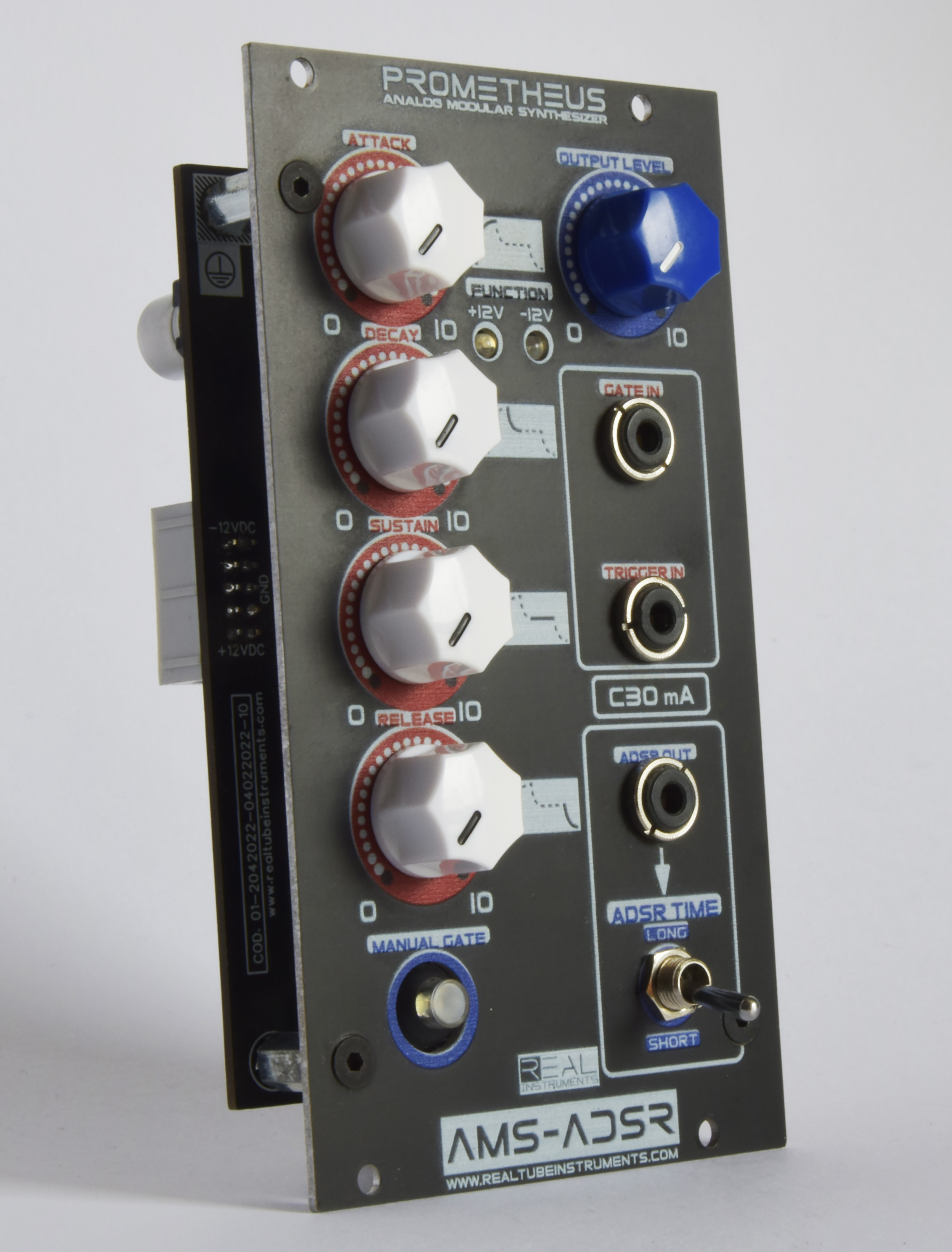

PROMETHEUS ANALOG MODULAR SYNTHESIZER AMS-ADSR – a compact yet rugged 14 HP ADSR Envelope, basic module for your synthesizer. This ADSR has the classic 4 controls: Attack, Decay, Sustain and Release. 1 TRIGGER input and 1 GATE input. 1 ADSR OUT output in CV is added for driving the VCA with adjustment in two modes: LONG and SHORT. Featuring a 10-pin IDC connector and advanced protections, this power module is your ticket to a simplified and efficient setup. Handcrafted with precision and great care at Real Instruments, it is the great solution for your modular synthesizer needs.

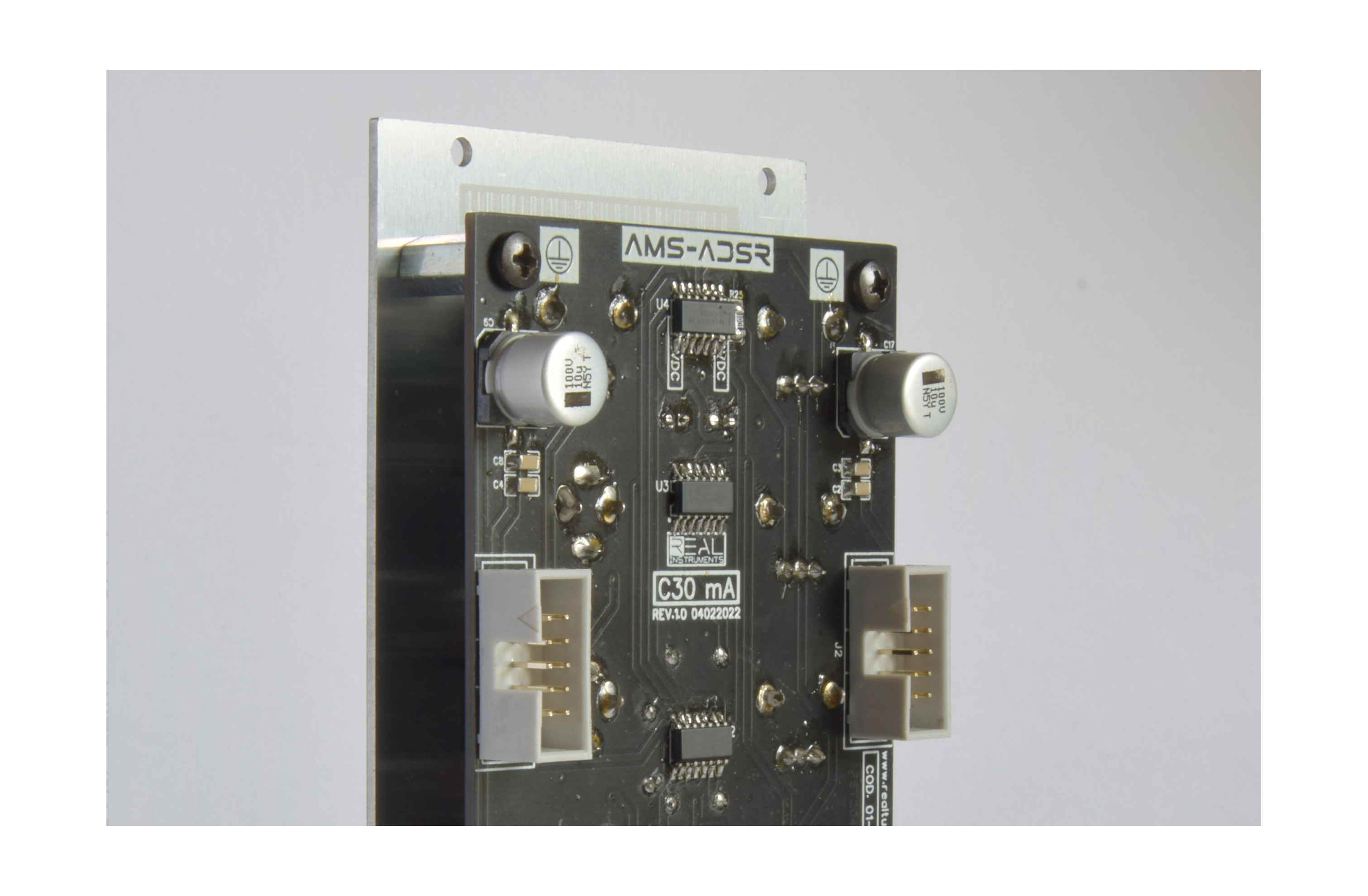

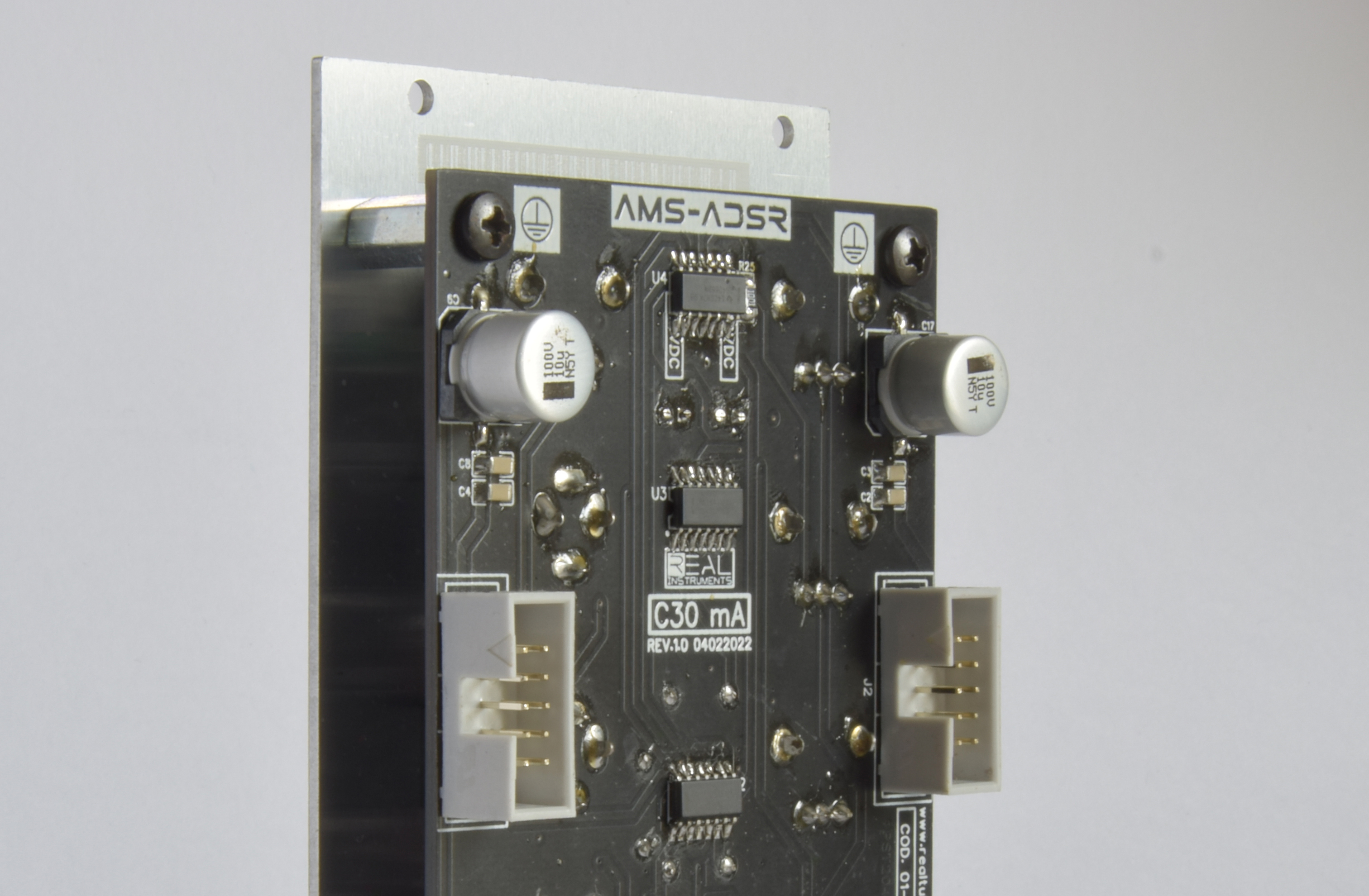

Made internally in Real Instruments laboratories with great care and precision. Consisting of precision ADSR envelope of the highest quality. Two "function" LEDs allow you to constantly monitor the two main voltages: +12 VDC and -12VDC. The 10-pin IDC connector allows you to "cascade" connect many modules up to a maximum of 1500 mA.
Handcrafted in our laboratory with a delivery
time of 15 days from order. 12 months
warranty (with invoice).
(We will be able, in the near future, to
speed up delivery times as we increase our production.
We are a small workshop and put a lot of effort into
what we build)
| -Supply Input: | +/-12 VDC - 32 mA (10 pins IDC connector - see picture) | ||
| -Output: | CV ADSR Output (LONG or SHORT time) | ||
| -Range: | +/- 10 V Control Voltage
Range +10 V Max 20mSec TRIGGER IN +10 V Max GATE IN | ||
| -Connections: | TRIGGER input signal jack 3.5
connector GATE input signal jack 3.5 connector 1 x ADSR OUT jack 3.5 connector with TIME selector Regulated OUTPUT LEVEL | ||
| -Dimensions: | 3 Rack Unit, 14 HP | ||
| -Environment: | Operating, 0°C to +50°C Storage, -20°C to +60°C |
||
| -Price: | |
||
