100% Fully Analogue 3 Channel Mixer.

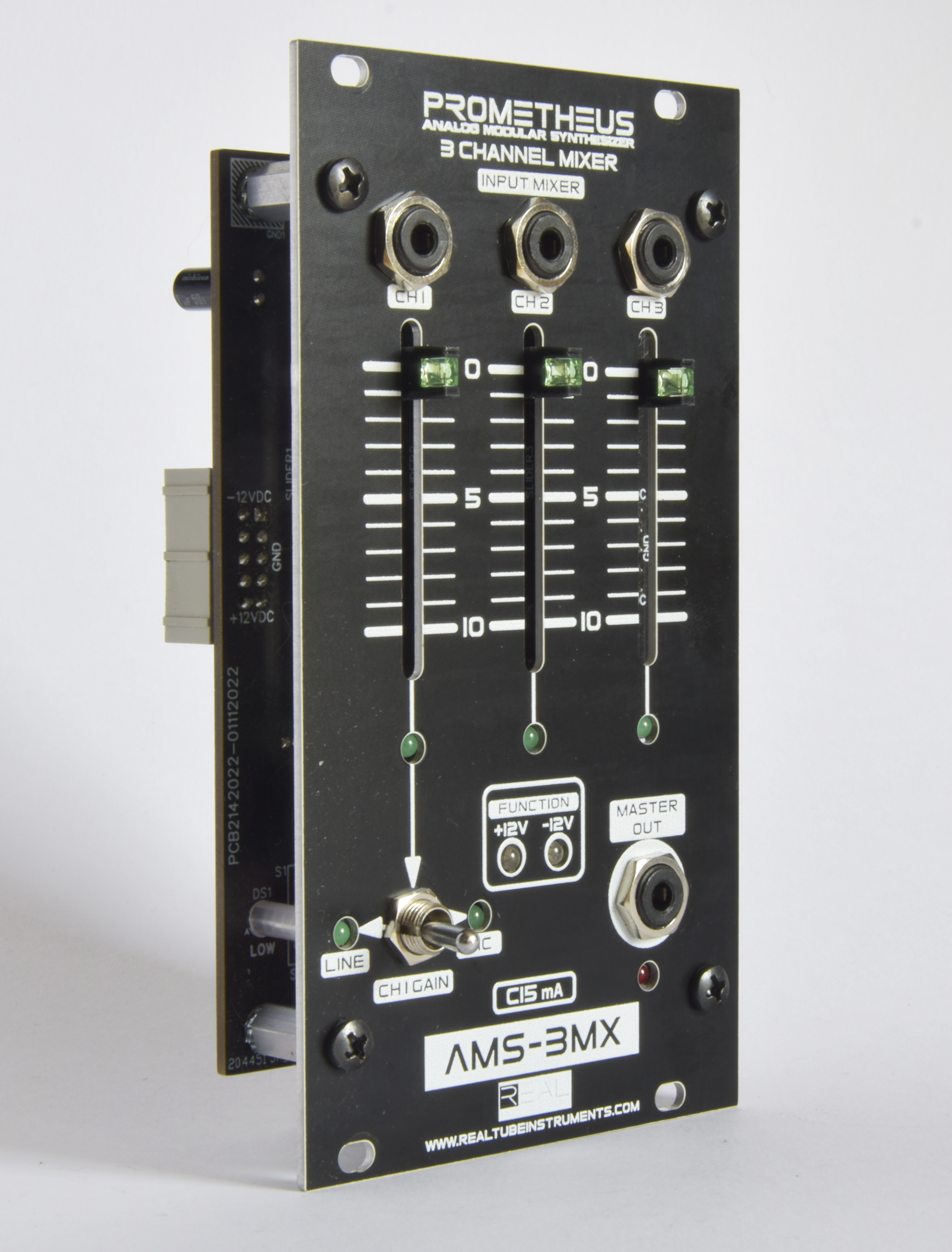

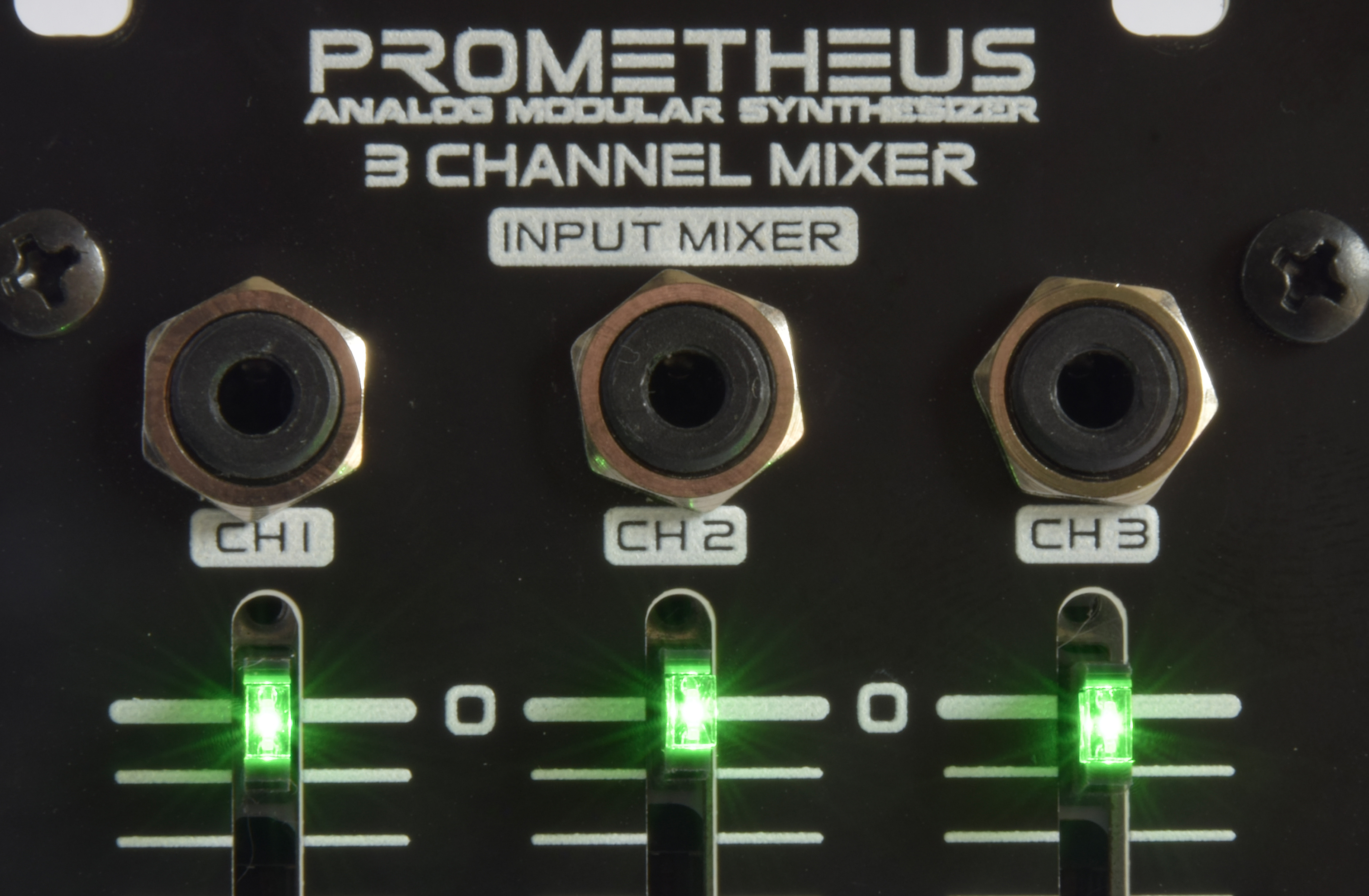

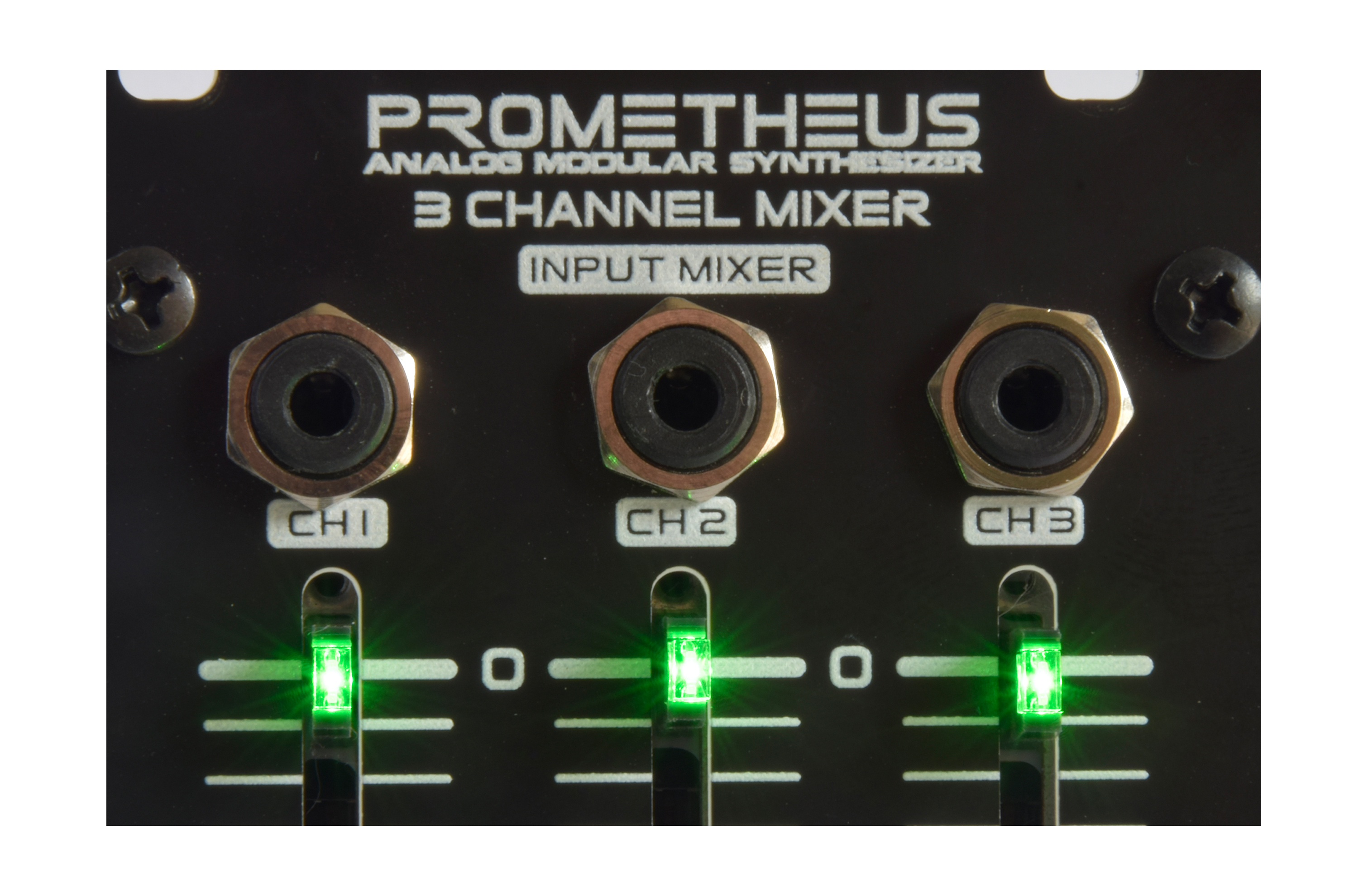

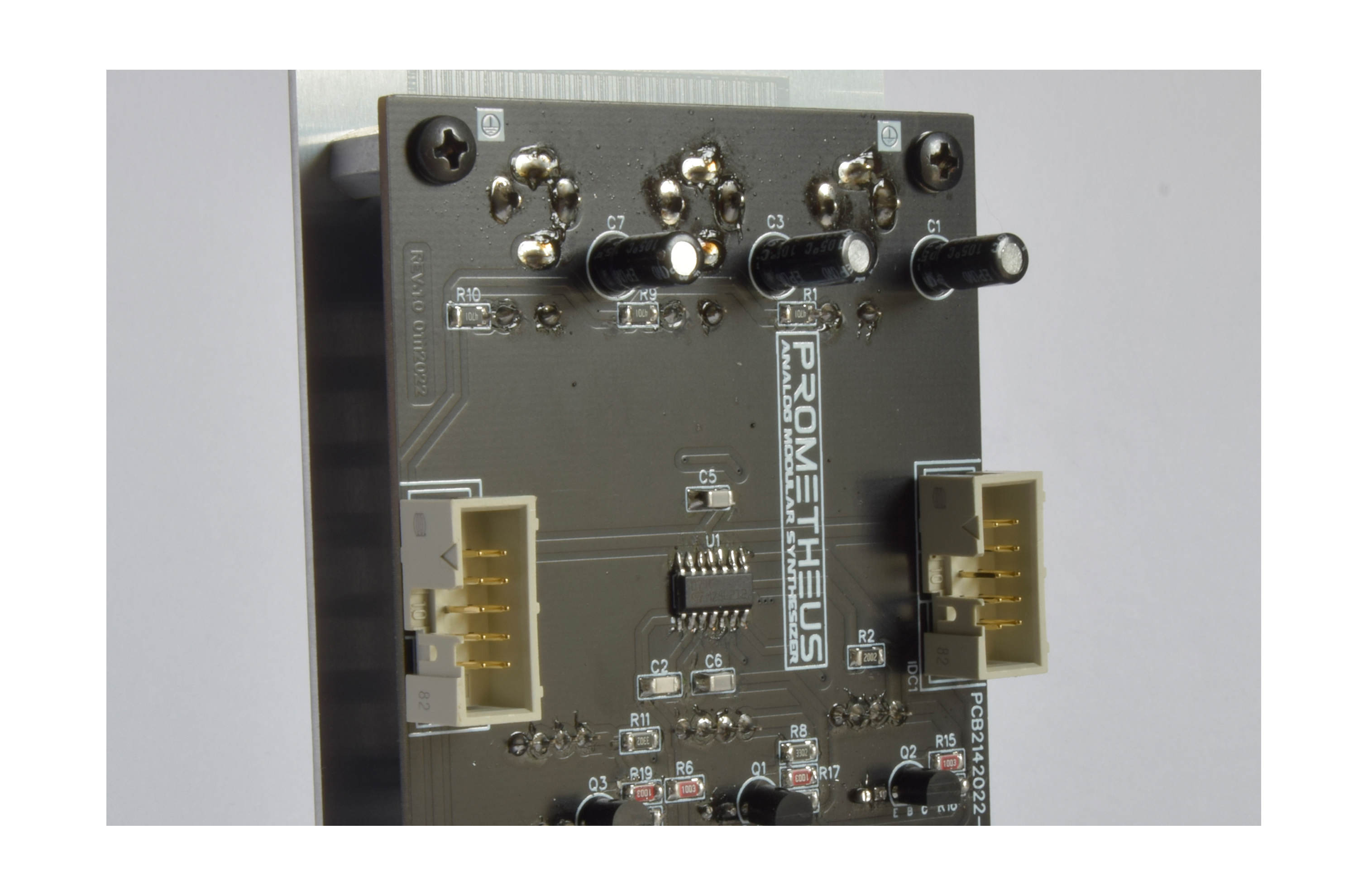

PROMETHEUS ANALOG MODULAR SYNTHESIZER AMS-3MX – a compact yet rugged 14 HP 3 Channel Mixer, add-on module for your synthesizer. This mixer is a simplified module for mixing up to 3 audio sources. Consisting of 3 channels. Channel 1 has MIC or LINE sensitivity selectable via switch. The GAIN are adjustable via illuminated SLIDERS. Each channel is equipped with a LED signal indicator and the MIXER output has a clipping indicator. Featuring a 10-pin IDC connector and advanced protections, this module is your ticket to a simplified and efficient setup. Handcrafted with precision and great care at Real Instruments, it is the great solution for your modular synthesizer needs.

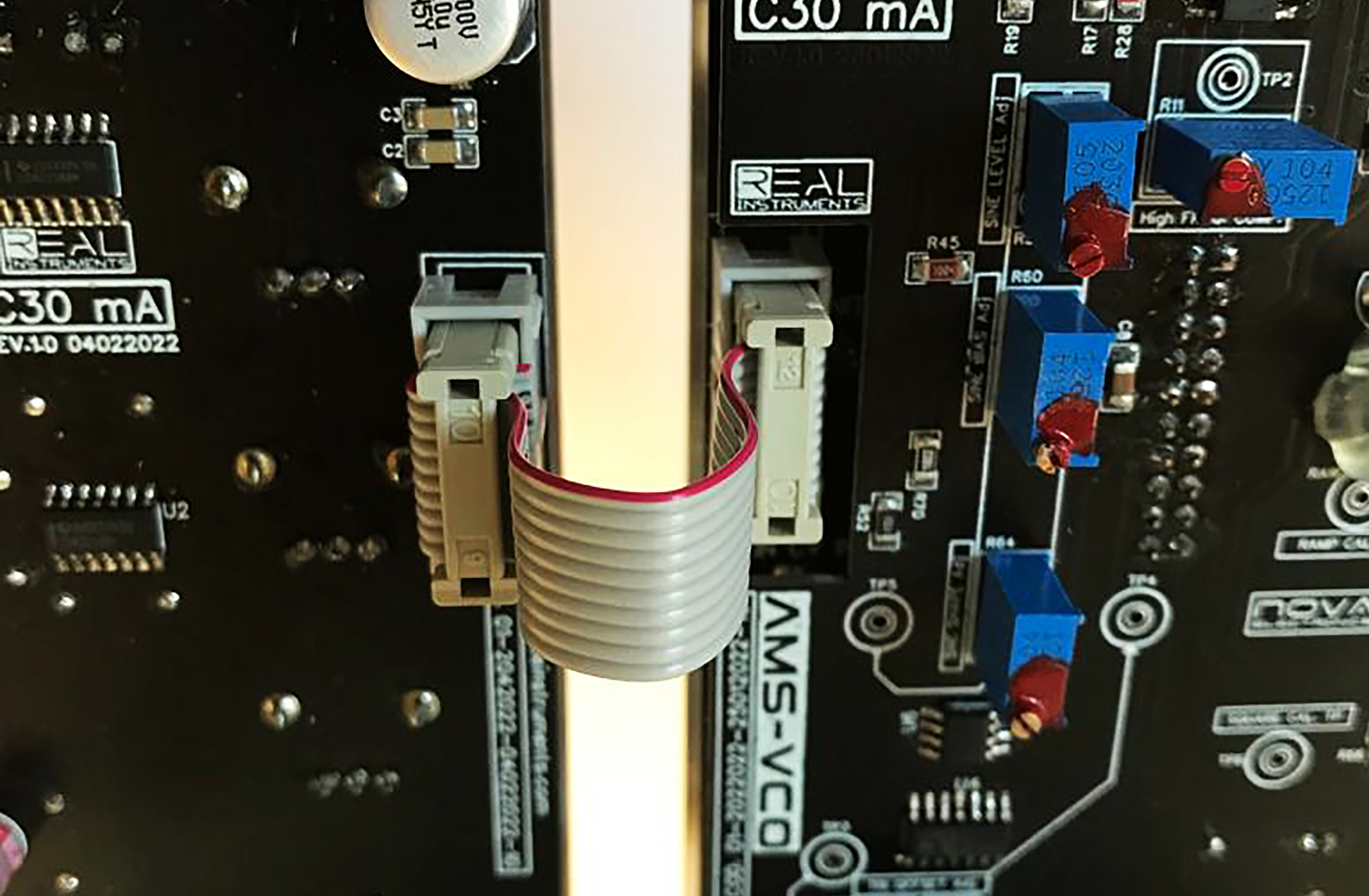

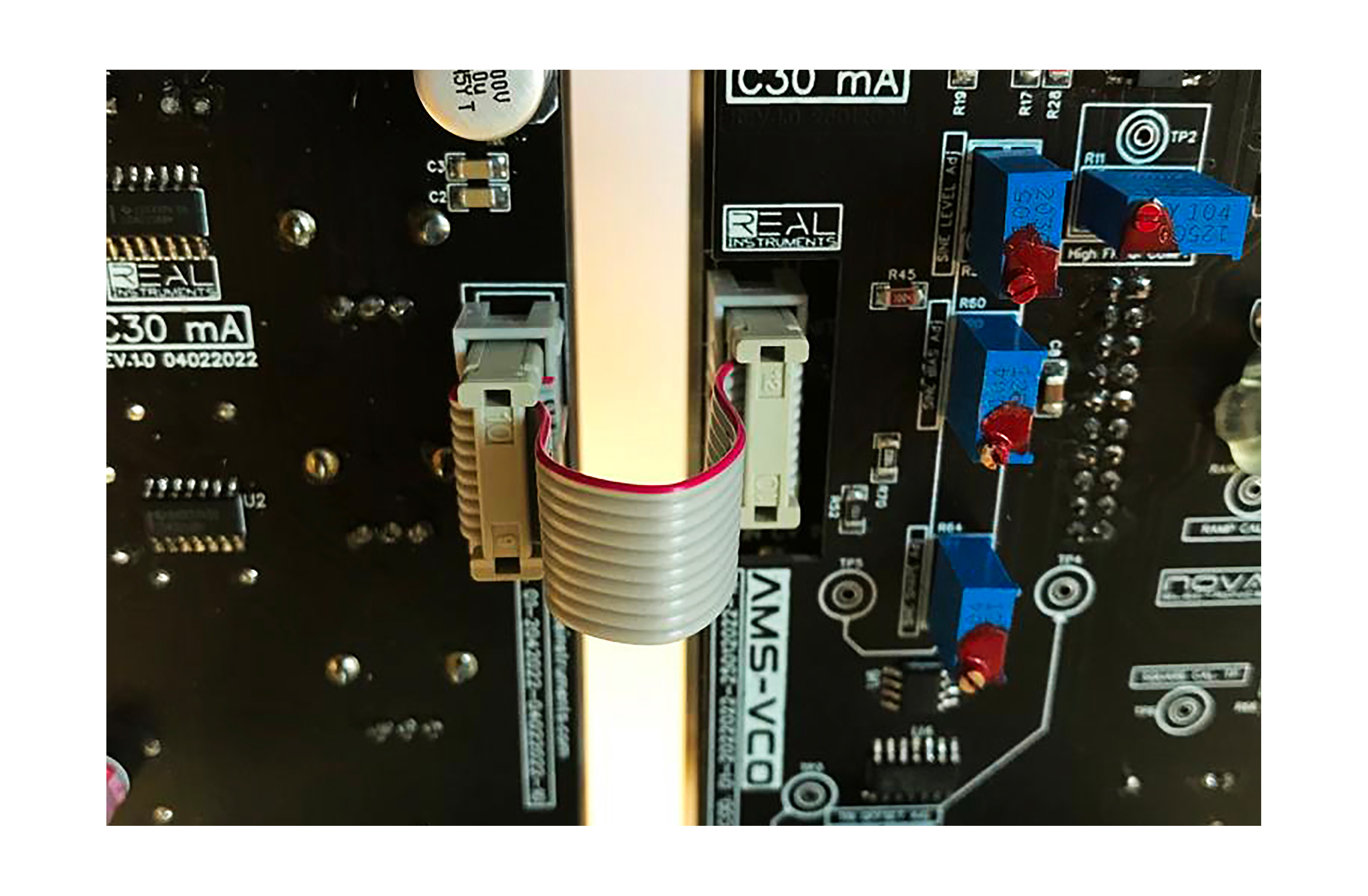

Made internally in Real Instruments laboratories with great care and precision. Consisting of 3 Channel Mixer of the highest quality. Two "function" LEDs allow you to constantly monitor the two main voltages: +12 VDC and -12VDC. The 10-pin IDC connector allows you to "cascade" connect many modules up to a maximum of 1500 mA.
Handcrafted in our laboratory with a delivery
time of 15 days from order. 12 months
warranty (with invoice).
(We will be able, in the near future, to
speed up delivery times as we increase our production.
We are a small workshop and put a lot of effort into
what we build)

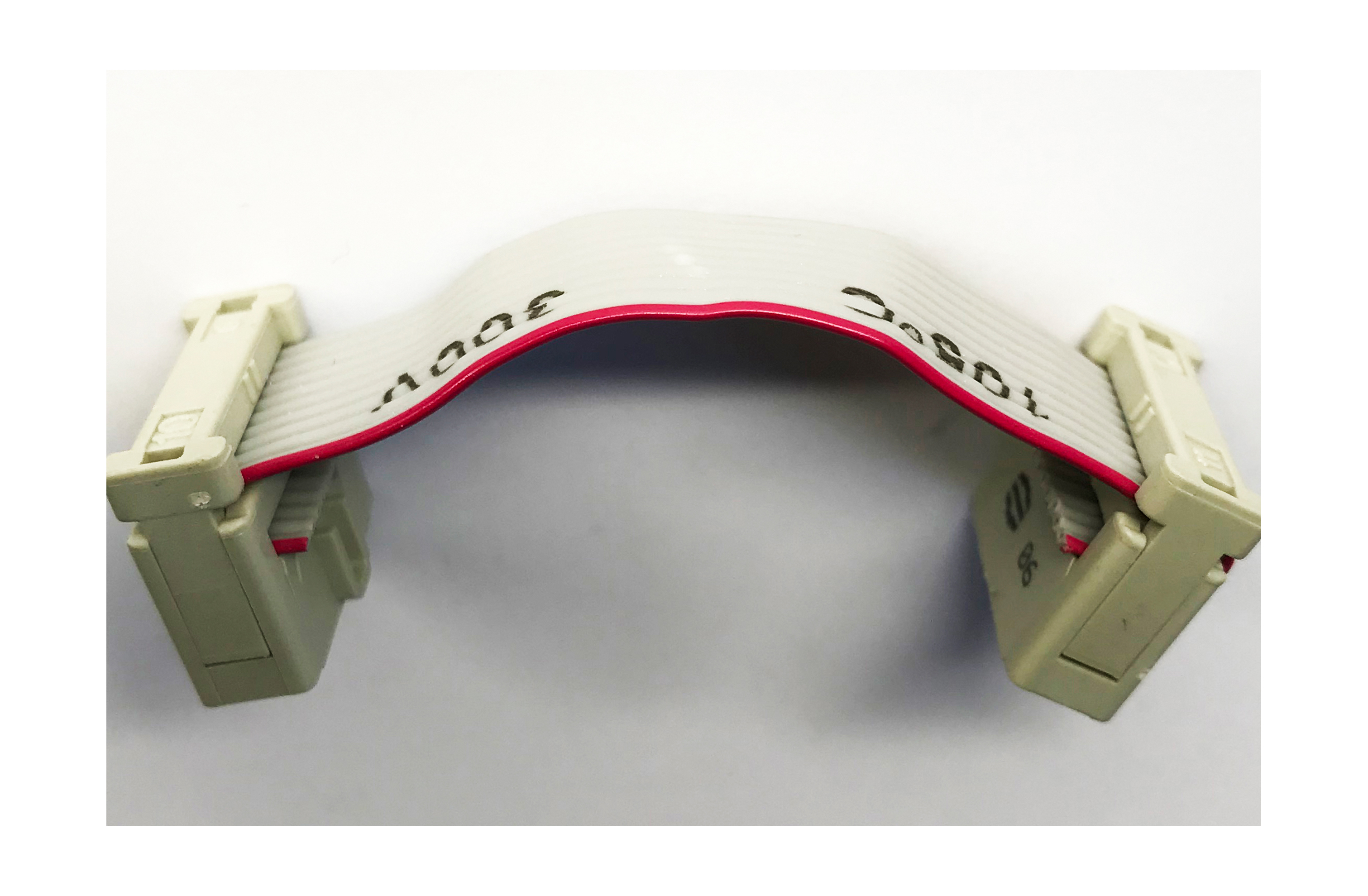

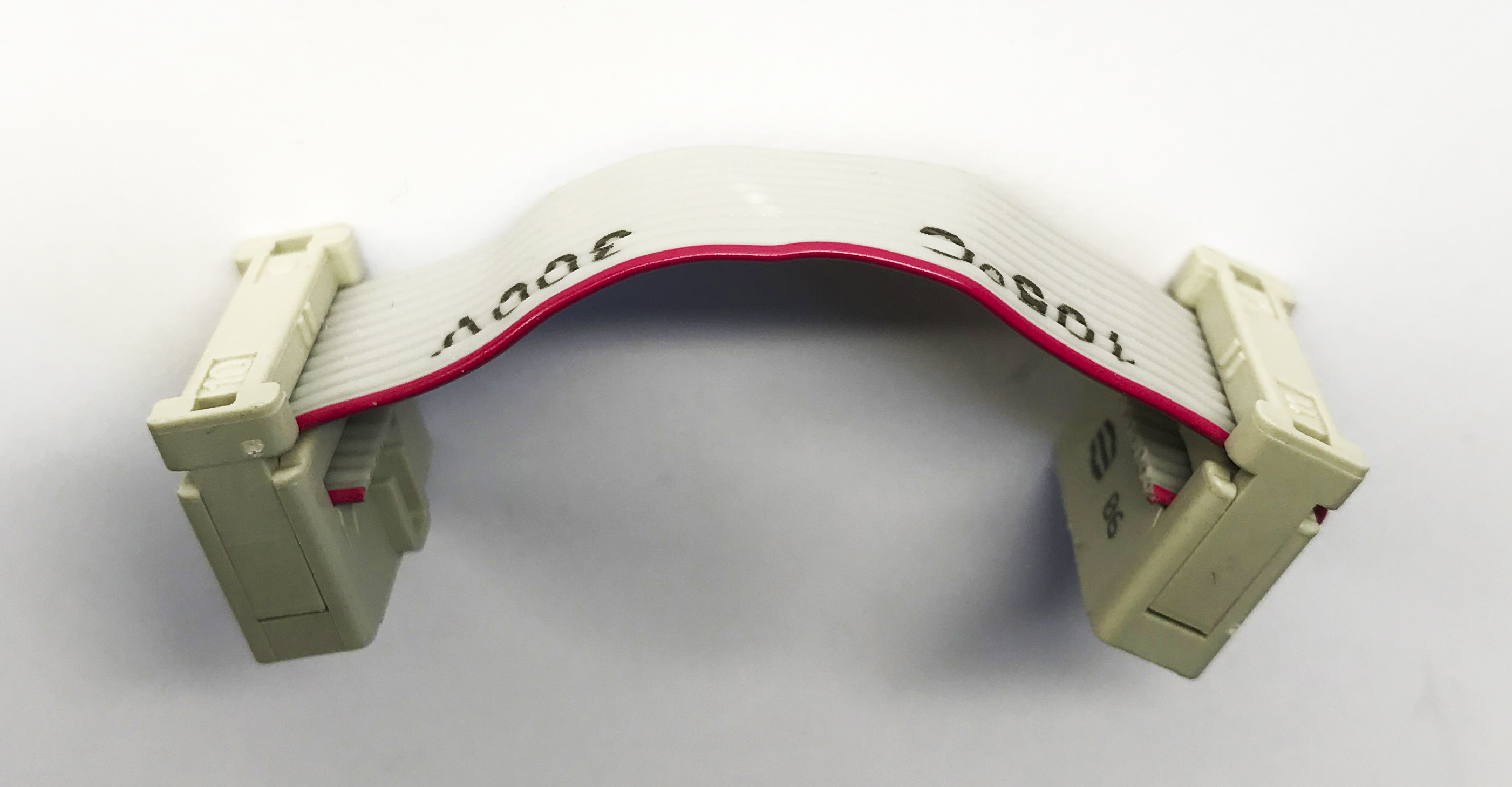

| -Supply Input: | +/-12 VDC - 30 mA (10 pins IDC connector - see picture) | ||
| -Output: | Line MIX Output | ||
| -Range: | LINE: +4 dBu - 1 Vpp Gain: 1.21 MIC: - 40 dBu - 10 mVpp Gain: 50 MIX OUTPUT: 10 Vpp | ||
| -Connections: | 3 x INPUTS jack 3.5
connectors 1 x OUTPUT MIX jack 3.5 connector | ||
| -Dimensions: | 3 Rack Unit, 14 HP | ||
| -Environment: | Operating, 0°C to +50°C Storage, -20°C to +60°C |
||
| -Price: | |
||
